The water tube boiler d type has become a cornerstone of modern industrial steam generation, widely adopted in power plants, chemical processing, and large-scale manufacturing. Its distinctive “D”-shaped configuration—with the furnace on one side and the convection tube bundle on the other—delivers superior heat transfer, high thermal efficiency, and the operational flexibility that today’s energy-intensive industries demand. As global manufacturing moves toward cleaner, more efficient energy use, the water tube boiler d type stands out as a proven solution for high-capacity, high-pressure steam applications.

Structure and Market Position

A water tube boiler d type features a longitudinal double-drum arrangement. The furnace is positioned on the right side of the boiler, while the convection tube bundle is arranged on the left, forming the shape of the letter “D” when viewed from the front. This configuration allows the furnace to be fully surrounded by membrane water walls, which maximize radiation heat absorption and minimize heat loss. The rear of the furnace connects to a convection tube bundle that completes the heat transfer process before flue gas exits through the economizer and condenser.

In the current market, this boiler type occupies a leading position in the medium-to-large capacity segment. Unlike fire tube boilers, which are limited to lower pressures and smaller capacities. This makes it the preferred choice for power generation, chemical processing, textile manufacturing, paper production, and large-scale food processing. The design also accommodates biomass and coal-fired applications when configured with appropriate combustion systems, giving it exceptional fuel flexibility in diverse industrial environments.

ZOZEN’s Water Tube D Type Boiler

ZOZEN primarily provides two products under the water tube boiler d type category: the SZS series Steam Boiler and Hot Water Boiler. Below are the detailed product specifications:

SZS Series Gas-Fired (Oil-Fired) Steam Boiler

Designed for industrial processes requiring high-pressure steam. The SZS series water tube boiler offers a capacity of 2 to 110 t/h, a working pressure of 1.25 to 5.3 MPa, and a steam temperature from 194°C up to 540°C for versatile industrial steam applications.The double-drum longitudinal “D”-type chamber structure, combined with full membrane water walls, improves heat transfer efficiency and extends service life beyond 20 years. Thermal efficiency exceeds 98% with economizer and condenser. NOx emissions are controlled to ≤30 mg/Nm³. Supported fuels include natural gas, coke oven gas, biogas, diesel, heavy oil, and crude oil.

SZS Series Gas-Fired (Oil-Fired) Hot Water Boiler

Designed for district heating, hospitals, and commercial heating. With a thermal capacity ranging from 7 to 116 MW, a working pressure of 1.0 to 1.6 MPa, supply and return temperatures of 115/70°C or 130/70°C, and a thermal efficiency of >96%, the SZS series hot water boiler is designed for efficient large-scale district heating.The forced water circulation design in the high-temperature zone prevents steam locking and ensures reliable cooling of heating surfaces.

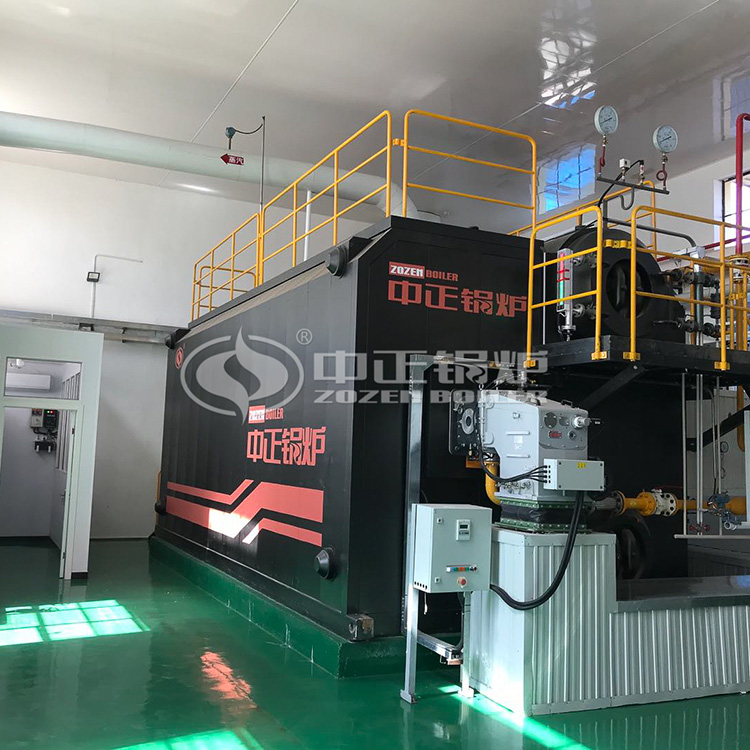

 Water tube boiler d type: SZS Series steam boiler

Application Fields and Real-World Cases

The water tube boiler d type is widely applied across multiple industries. In the chemical industry, it provides process steam for reaction, distillation, and drying processes. In textiles, it supplies steam for dyeing, finishing, and heat setting. In paper manufacturing, it delivers steam for pulping, drying, and coating processes. In food processing, it provides clean steam for sterilization, cooking, and pasteurization.

ZOZEN has delivered water tube boiler d type solutions to customers in more than 100 countries. Two representative projects demonstrate the series’ performance in real-world applications.

Case 1: A chemical enterprise in Inner Mongolia requiring a steam solution capable of continuous heating and handling significant load fluctuations. ZOZEN supplied an 25 tph SZS Series water tube boiler d type with a full membrane wall structure and D-type layout for stable operation, achieving thermal efficiency exceeding 98% with economizer and condenser, and equipped with a PLC intelligent control system featuring automatic ignition, combustion proportion adjustment, and multiple safety interlocks.

Case 2: A tomato product company in Xinjiang expanded its production line to 10,000 tons annually, replacing three 10 t/h coal-fired boilers that could not meet emission standards or support higher processing loads. ZOZEN supplied an 35t/h SZS Series water tube boiler d type as the primary unit for peak steam demand, paired with a 6 t/h WNS Series auxiliary boiler for low-season operation, achieving over 98% thermal efficiency with low-NOx emissions and providing stable, high-quality steam for washing, sorting, pulping, evaporation, and pasteurization.

A Future-Ready Investment – Why the Water Tube Boiler D Type Leads the Industry

The water tube boiler d type delivers a combination of high efficiency, large capacity, operational safety, environmental compliance, and fuel flexibility that few other boiler architectures can match. For industrial users facing rising energy costs and tightening emissions regulations, this boiler type represents a future-ready investment. ZOZEN Boiler continues to innovate in this field, with ongoing R&D in condensing heat recovery, IoT-based remote monitoring, and low-nitrogen combustion technology. As the global industrial sector transitions toward smarter, cleaner, and more efficient energy systems, the water tube boiler d type will remain a central technology—and ZOZEN’s SZS series will continue to set the benchmark for performance and reliability in the international market.

With 38 years of manufacturing experience, ZOZEN Boiler has established itself as a trusted name in the global industrial boiler industry. The company operates from a 150,000-square-meter production base equipped with advanced automated manufacturing lines, including robotic welding systems and CNC machining centers, ensuring consistent quality and precision across every boiler produced. Holding ASME "S" and "U" stamps as well as CE certification, ZOZEN meets the most stringent international standards for boiler safety and performance. With a track record of more than 15,000 successful projects across over 100 countries worldwide, ZOZEN has demonstrated its ability to deliver reliable and efficient steam solutions for diverse industries ranging from chemical processing and food manufacturing to textile production and power generation. Beyond supplying advanced water tube boiler d type equipment, ZOZEN offers comprehensive end-to-end support, including complete system design tailored to specific process requirements, professional commissioning services to ensure smooth startup, operator training programs to maximize equipment performance and safety, and ongoing lifecycle maintenance to extend boiler service life and minimize unplanned downtime. For industrial users planning new projects or upgrading existing steam systems, ZOZEN provides not just a product but a long-term partnership backed by decades of engineering expertise and global service capabilities.
