Introduction
Boiler Parameters
Thermal capacity: 2-10 t/h
Working pressure: 1-2.5 MPa
Outlet temperature: 170℃-225℃
Available fuel: Biomass molding granules, wood chip, corn cob, saw dust, palm shells, rice husk, etc.
Available industries: Heating, chemical, food, tobacco, textile, printing and dyeing, feed, medicine, building material, wine, rubber, hospital
Boiler features
The DZL series quick-installed boiler is a horizontal three-pass water-fire tube chain grate boiler designed for biomass combustion. The boiler features a single drum layout with threaded smoke tubes for convective heating surface, and water-cooled walls on both sides of the drum for radiant heating surface. The combustion equipment adopts a lightweight chain grate, and the boiler is delivered in a complete quick-installed form. The electrical control system enables infinitely variable control of the grate, with alarm and interlock protection for critical parameters.
Boiler Advantages

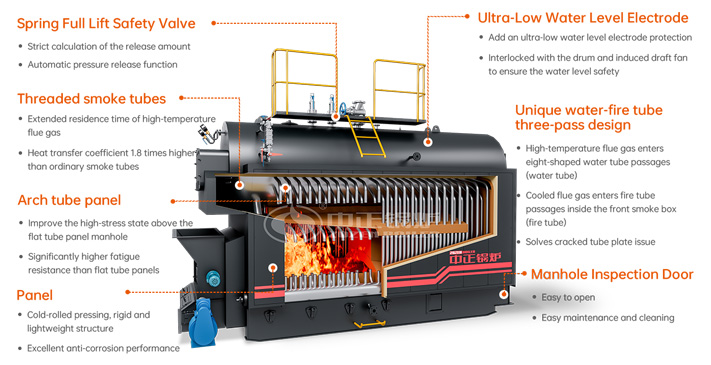

Working Principal
Boiler Specification
| Model | Steam Capacity | Steam Pressure | Steam Temperature | Shipping Dimension | Heat Efficiency |
| DZL2-1.25-SCIII | 2 t/h | 1.25 Mpa | 194 ºC | 5.30×2.40×3.40(m) | >83% |
| DZL2-1.6-SCIII | 2 t/h | 1.6 Mpa | 204 ºC | 5.30×2.40×3.40(m) | >83% |
| DZL2-2.5-SCIII | 2 t/h | 2.5 Mpa | 225 ºC | 5.30×2.40×3.40 (m) | >83% |
| DZL4-1.25-SCIII | 4 t/h | 1.25 Mpa | 194 ºC | 6.50×2.70×3.60(m) | >83% |
| DZL4-1.6-SCIII | 4 t/h | 1.6 Mpa | 204 ºC | 6.50×2.70×3.60 (m) | >83% |
| DZL4-2.5-SCIII | 4 t/h | 2.5 Mpa | 225 ºC | 6.50×2.70×3.60(m) | >83% |

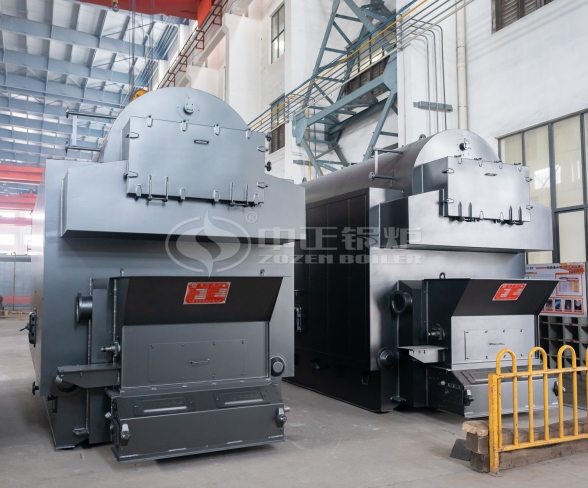

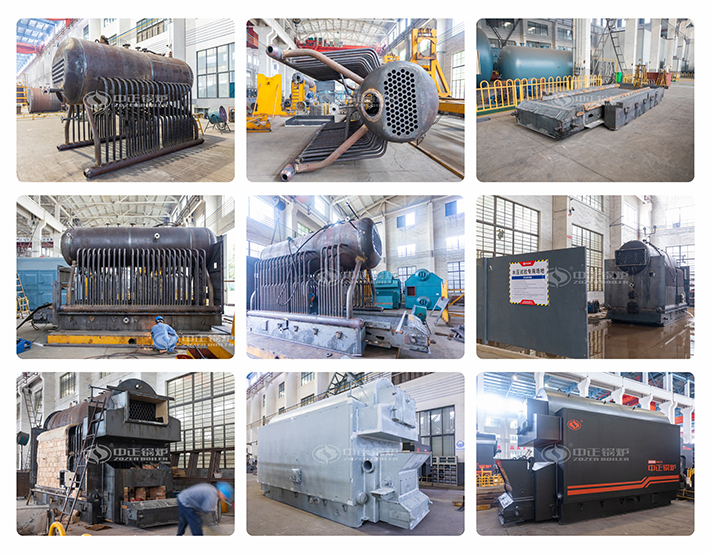

Workshop
Oversea market
