Introduction
Boiler Parameters
Thermal capacity: 15-35 t/h
Working pressure: 1.25 MPa / 1.6 MPa / 2.5 MPa
Outlet temperature: 194℃ / 204℃ / 225℃
Available fuel: Biomass bulk fuel, formwork, wood chips, palm shells, etc.
Available industries: Heating, chemical, food, tobacco, textile, printing and dyeing, feed, pharmaceutical, building materials, brewing, rubber, hospitals.
Boiler features

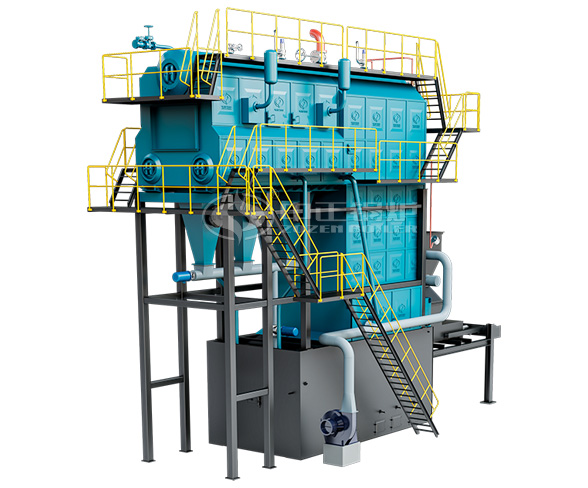

The DZW series third-generation biomass boiler is a water tube boiler composed of three drums. It is independently developed by ZOZEN Boiler. The boiler adopts an assembly structure, consisting of two large components. The upper large part is the heating surface of the main body, and the lower large part is the combustion equipment.

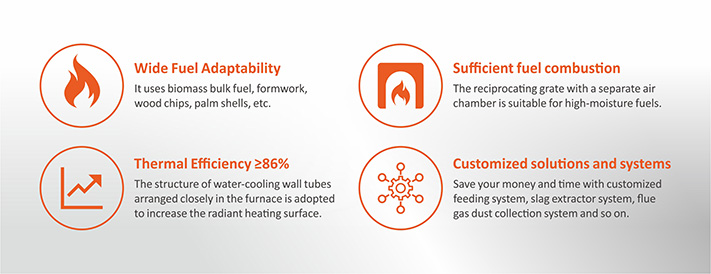

Boiler Advantages

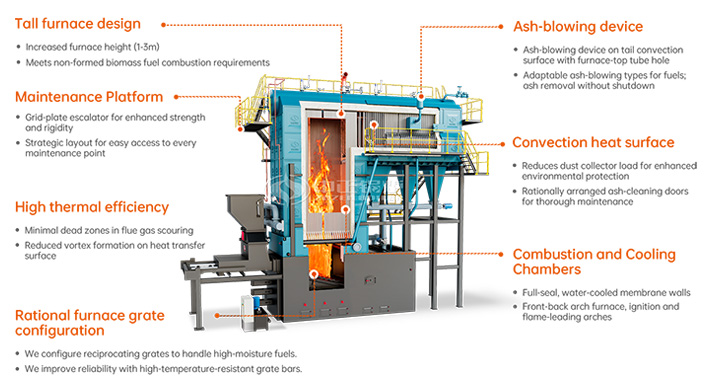

Working Principal
Boiler Specification
| Model | Steam Capacity | Steam Pressure | Steam Temperature | Shipping Dimension | Heat Efficiency |
| DZW15-1.25-SCIII | 15 t/h | 1.25 Mpa | 194 ºC | 10.10×3.45×3.60 (m) | >86% |
| DZW15-1.6-SCIII | 15 t/h | 1.6 Mpa | 204 ºC | 10.10×3.45×3.60 (m) | >86% |
| DZW15-2.5-SCIII | 15 t/h | 2.5 Mpa | 225 ºC | 10.10×3.45×3.60 (m) | >86% |
| DZW20-1.25-SCIII | 20 t/h | 1.25 Mpa | 194 ºC | 10.70×3.90×3.60 9.30×3.81×3.00 (m) | >86% |
| DZW20-1.6-SCIII | 20 t/h | 1.6 Mpa | 204 ºC | 10.70×3.90×3.60 9.30×3.81×3.00 (m) | >86% |
| DZW20-2.5-SCIII | 20 t/h | 2.5 Mpa | 225 ºC | 10.70×3.90×3.60 9.30×3.81×3.00(m) | >86% |
| DZW25-1.25-SCIII | 25 t/h | 1.25 Mpa | 194 ºC | 10.70×3.90×3.60 9.30×3.81×3.00 (m) | >86% |
| DZW25-1.6-SCIII | 25 t/h | 1.6 Mpa | 204 ºC | 10.70×3.90×3.60 9.30×3.81×3.00(m) | >86% |
| DZW25-2.5-SCIII | 25 t/h | 2.5 Mpa | 225 ºC | 10.70×3.90×3.60 9.30×3.81×3.00(m) | >86% |
| DZW30-1.25-SCIII | 30 t/h | 1.25 Mpa | 194 ºC | 10.00×3.36×3.60(m) | >86% |
| DZW30-1.6-SCIII | 30 t/h | 1.6 Mpa | 204 ºC | 10.00×3.36×3.60 (m) | >86% |
| DZW30-2.5-SCIII | 30 t/h | 2.5 Mpa | 225 ºC | 10.00×3.36×3.60 (m) | >86% |
| DZW35-1.25-SCIII | 35 t/h | 1.25 Mpa | 194 ºC | 10.00×4.10×3.80 (m) | >86% |
| DZW35-1.6-SCIII | 35 t/h | 1.6 Mpa | 204 ºC | 10.00×4.10×3.80 (m) | >86% |
| DZW35-2.5-SCIII | 35 t/h | 2.5 Mpa | 225 ºC | 10.00×4.10×3.80 (m) | >86% |

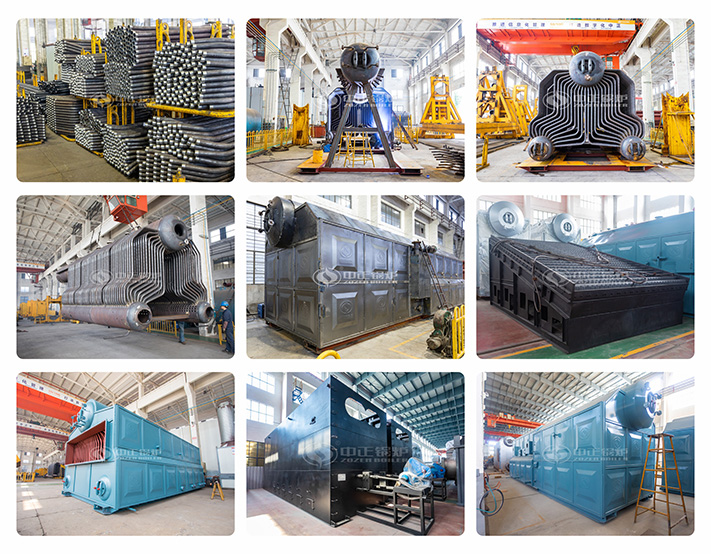

Workshop

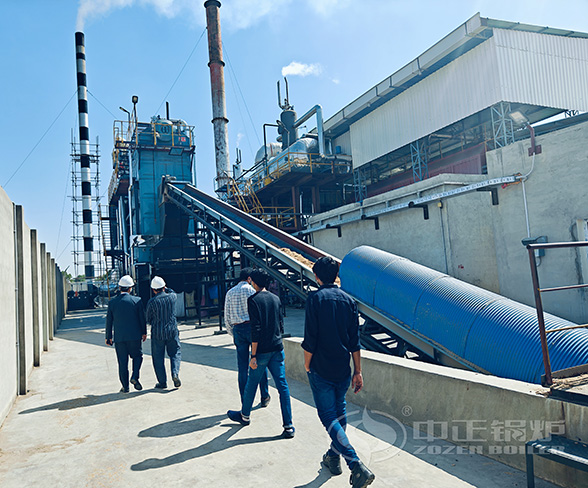

Oversea market
