ZOZEN SHX series of circulating fuidized bed steam & hot water boilers :
CFB steam boilers
Steam capacity : 10-75T/H
Steam pressure : 1.25-2.5MPa
Steam temperature : 194-225℃
CFB hot water boilers
Heat capacity : 7-58MW
Temperature of outlet water : 130℃/150℃
Temperature of inlet water : 70℃/90℃
Working pressure : 1.0-1.6MPa

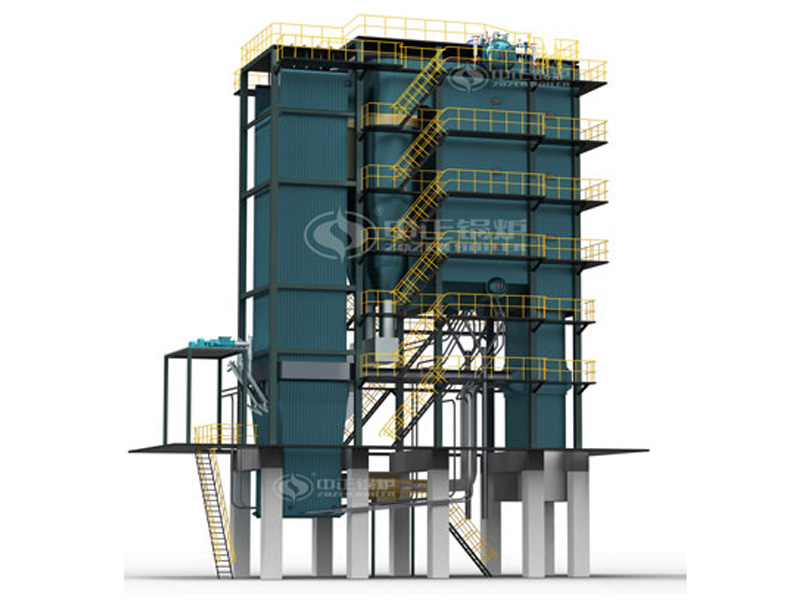

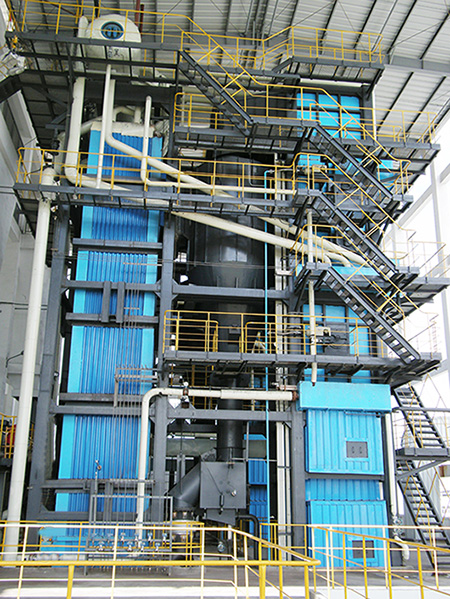

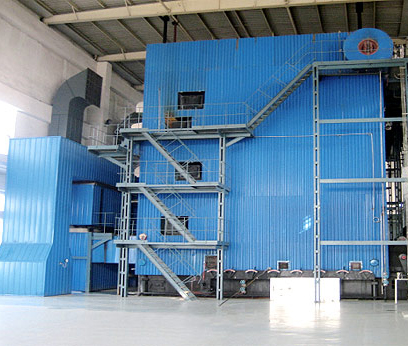

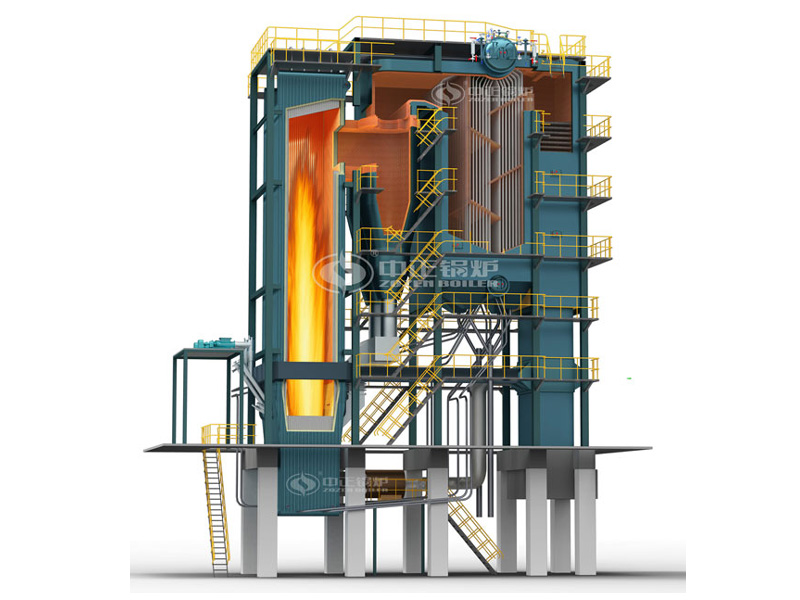

Product Pictures
Boiler Features
Circulating Fluidized Bed Combustion (CFBC) being a new, mature, highly efficient, green and low emission technology, has lots of merits, which can not be found in other combustion method:
1.CFBC is low temperature combustion, therefore, the emission of nitrogen oxide with only around 200ppm, is far less than the one from coal powder furnace. At the same time, it is feasible to actualize direct desulfuration during combustion at a high efficiency. And the equipment is simple and cheap as well.
The initial investment for desulfurization and performance costing is much lower than that of PC+FCD.
2. Extensive fuel adaptability and high combustion efficiency, which is especially suitable for low calorie inferior coal.
3. The exhausted cinder has better activity, and it is able to be actually integrated and free from pollution.
4. Wide range for load adjustment, low loads can be reduced by around 30% of full load.
Oversea Market
Workshop
Model List
SHX10-1.25-AI | SHX10-1.60-AI | SHX10-2.50-AI |
SHX15-1.25-AI | SHX15-1.60-AI | SHX15-2.50-AI |
SHX20-1.25-AI | SHX20-1.60-AI | SHX20-2.50-AI |
SHX25-1.25-AI | SHX25-1.60-AI | SHX25-2.50-AI |
SHX30-1.25-AI | SHX30-1.60-AI | SHX30-2.50-AI |
SHX35-1.25-AI | SHX35-1.60-AI | SHX35-2.50-AI |
SHX40-1.25-AI | SHX40-1.60-AI | SHX40-2.50-AI |
SHX45-1.25-AI | SHX45-1.60-AI | SHX45-2.50-AI |
SHX50-1.25-AI | SHX50-1.60-AI | SHX50-2.50-AI |
SHX65-1.25-AI | SHX65-1.60-AI | SHX65-2.50-AI |
SHX70-1.25-AI | SHX70-1.60-AI | SHX70-2.50-AI |
Total Integration goes far beyond boilers.
Efficiency and quality don't end with our boilers. ZOZEN complete integration produces the most efficient boiler solutions in the world. Completely designed, engineered, manufactured, integrated, and serviced by our team, our systems don't have a single outsourced component to jeopardize compatibility or performance. If you are looking for the best-quality boiler systems with the lowest emissions and highest efficiencies, you are looking for ZOZEN.
