Introduction
Boiler Parameters
Thermal capacity: 1400-14000 kW
Working pressure: 0.8-1.0 MPa
Outlet temperature: 320 °C
Available fuel: Natural gas, coke oven gas, biogas, heavy oil, diesel oil, light oil, etc.
Available industries: Petroleum, chemical, chemical fiber, pharmaceutical, textile printing and dyeing, building materials, wood processing, vegetable oil processing and other industries

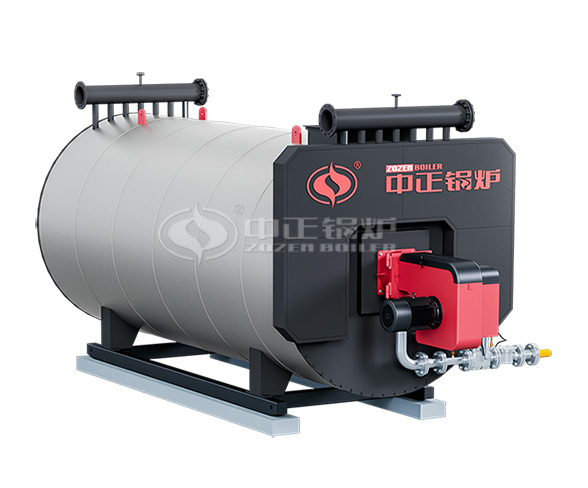

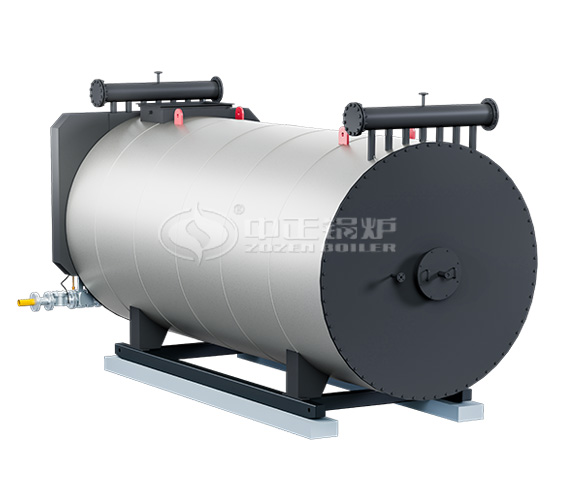

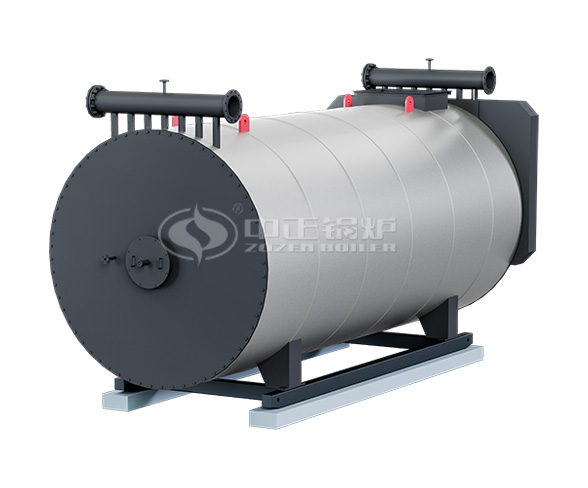

Boiler features
The YQW series oil/gas thermal oil boiler adopts a two or three passes round coil structure. The end of the coil tube is tapered, effectively protecting the end furnace wall of the boiler. It is equipped with advanced combustion equipment, and the operation of the boiler is fully automated. The boiler is shipped as a whole and can be put into operation just by connecting the gas (oil) and electricity after it is in place on the site.

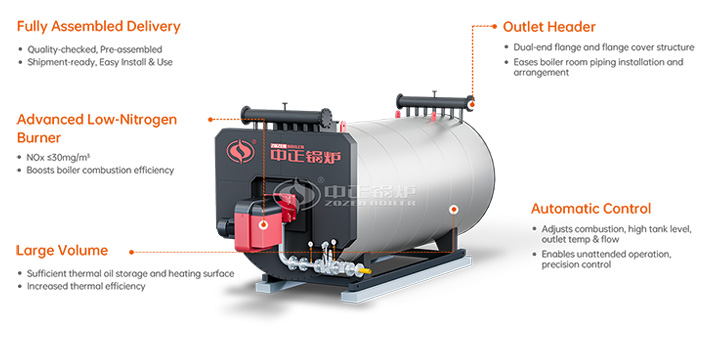

Boiler Advantages
Working Principal
Boiler Specification
| Model | Rated thermal power (KW) | Rated thermal power (×104kcal/h) | Rated outlet oil temperature (≤℃) | Rated working pressure (MPa) | Maximum transport weight (t) | Maximum transport dimensions (m) | Thermal efficiency (%) |
| YQ(Y)W-1400Q(Y) | 1400 | 120 | 320 | 0.8 | 8.0 | 4.55×2.05×2.60 | >92 |
| YQ(Y)W-1800Q(Y) | 1800 | 160 | 320 | 0.8 | 9.5 | 4.95×2.15×2.70 | >92 |
| YQ(Y)W-2100Q(Y) | 2100 | 180 | 320 | 0.8 | 11.0 | 4.95×2.40×3.00 | >92 |
| YQ(Y)W-2400Q(Y) | 2400 | 200 | 320 | 0.8 | 12.0 | 5.40×2.40×3.00 | >92 |
| YQ(Y)W-2800Q(Y) | 2800 | 240 | 320 | 0.8 | 14.5 | 6.10×2.60×3.10 | >92 |
| YQ(Y)W-3500Q(Y) | 3500 | 300 | 320 | 0.8 | 16.0 | 6.90×2.60×3.10 | >92 |
| YQ(Y)W-4200Q(Y) | 4200 | 360 | 320 | 0.8 | 18.0 | 6.90×2.75×3.35 | >92 |
| YQ(Y)W-4600Q(Y) | 4600 | 400 | 320 | 0.8 | 20.0 | 6.90×2.92×3.55 | >92 |
| YQ(Y)W-6000Q(Y) | 6000 | 500 | 320 | 0.8 | 26.0 | 7.20×3.25×3.98 | >92 |
| YQ(Y)W-7000Q(Y) | 7000 | 600 | 320 | 0.8 | 33.0 | 7.80×3.40×4.10 | >92 |
| YQ(Y)W-8200Q(Y) | 8200 | 700 | 320 | 0.8 | 37.0 | 8.00×3.55×4.30 | >92 |
| YQ(Y)W-9400Q(Y) | 9400 | 800 | 320 | 0.8 | 44.0 | 9.15×3.70×4.60 | >92 |
| YQ(Y)W-10500Q(Y) | 10500 | 900 | 320 | 0.8 | 47.0 | 9.85×3.80×4.70 | >92 |
| YQ(Y)W-12000Q(Y) | 12000 | 1000 | 320 | 0.8 | 48.0 | 10.19×3.80×4.70 | >92 |
| YQ(Y)W-14000Q(Y) | 14000 | 1200 | 320 | 0.8 | 61.0 | 10.75×4.00×4.90 | >92 |

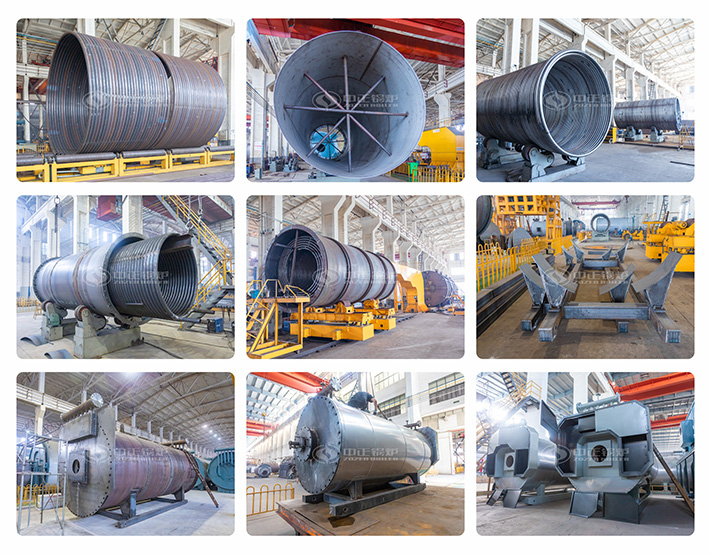

Workshop
