Product thermal capacity: 1 - 20 t/h
Working pressure: 0.7 - 2 Mpa
Available fuel: Nature gas, coke oven gas, biogas, methanol, liquid propane gas, diesel, heavy oil, light oil, crude oil, etc.
Available industries: Heat supplying, chemical, food, textile, printing and dyeing, cigarettes and tobacco, fodder, pharmacy, building materials, brewery, rubber, hospital etc.

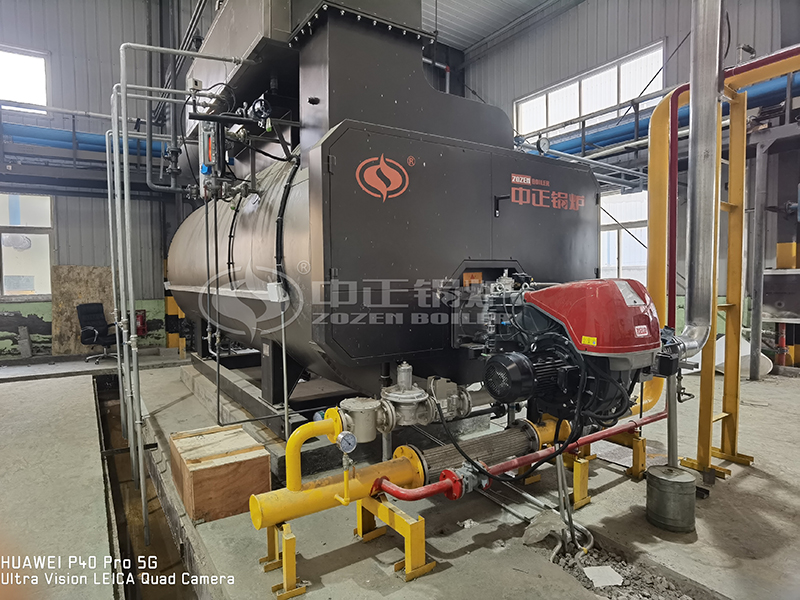

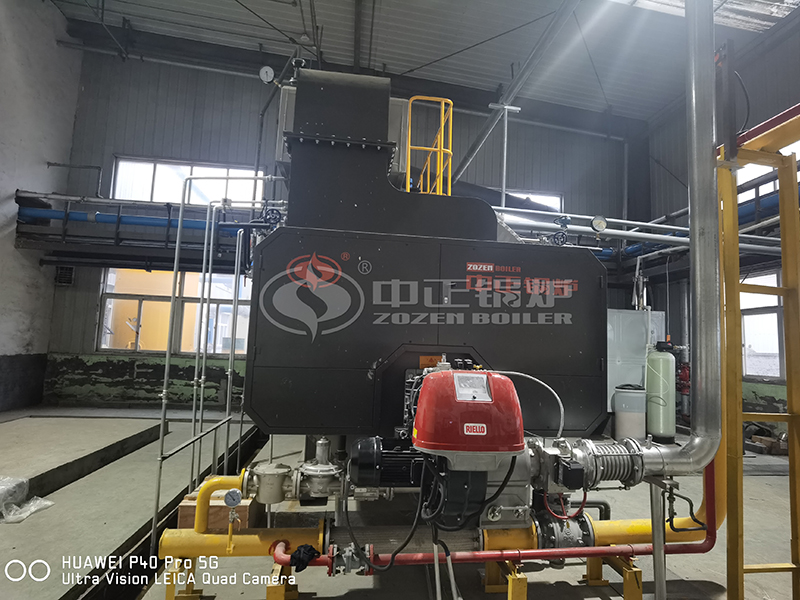

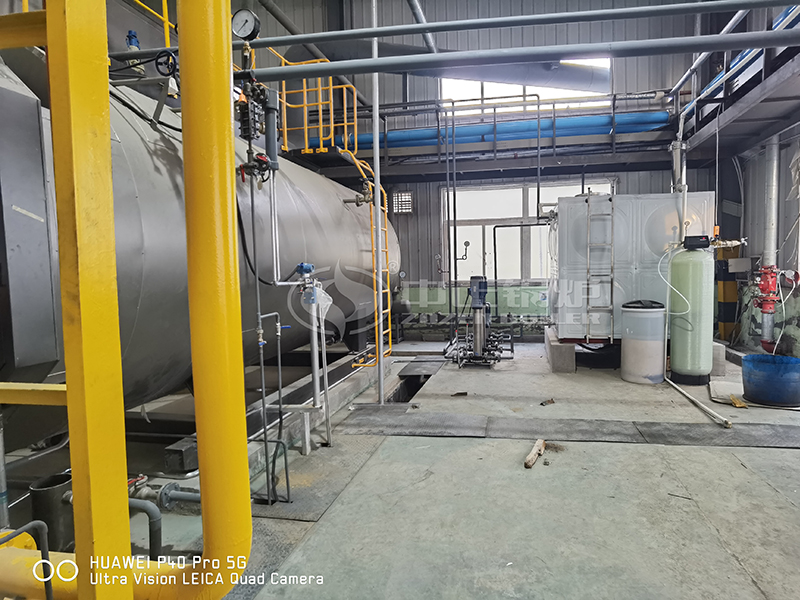

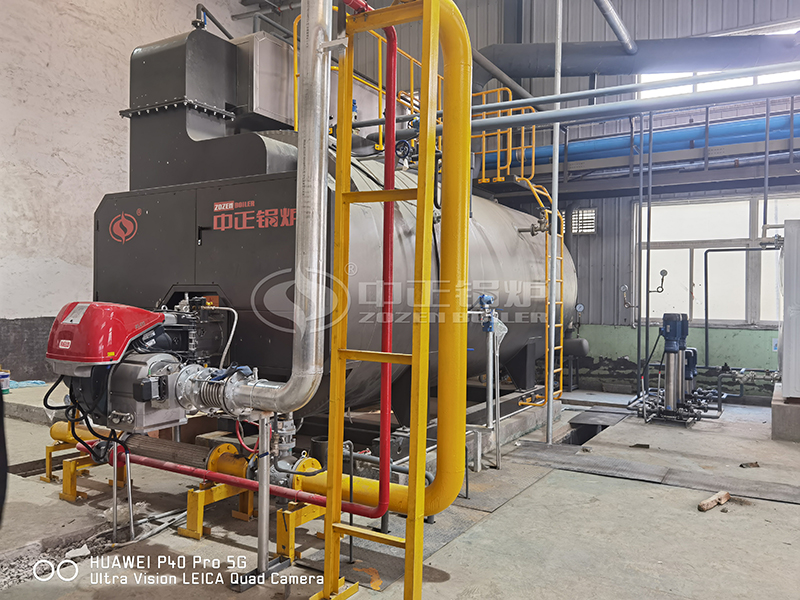

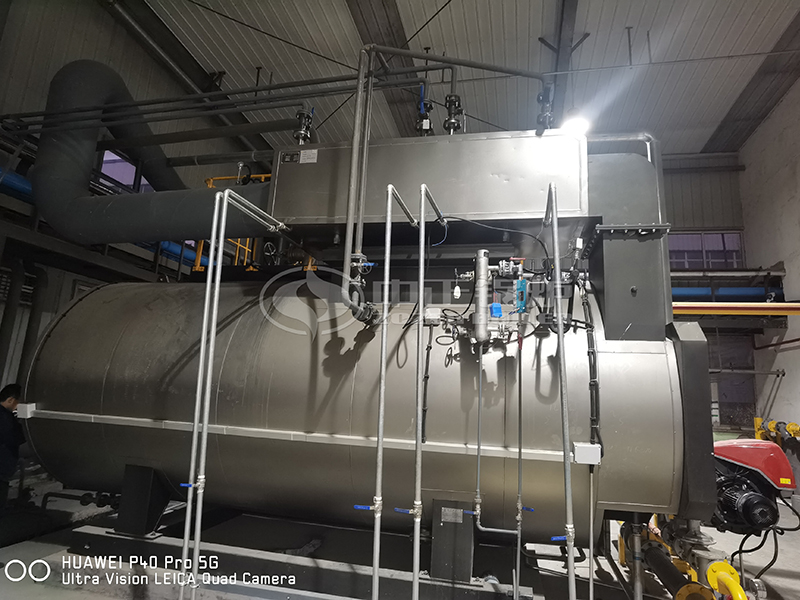

WNS series gas / oil fired boiler which designs and produces by ZOZEN Boiler Group is fire tube boiler with high efficiency up to 98% thermal efficiency. This is a kind of fast-assembly installation boiler which consists of boiler proper, interconnecting flue, burner, steam & water system, economizer, etc. This boiler has the characteristics of wide fuel adaptability, high thermal efficiency, environmental protection, easy installation and maintenance, and is the most popular furnace type among customers.
The key part such as material cutting, rolling, drilling are proceeded by advanced CNC machining process to reduce the assemble stress and extend boiler working lifetime.
The front and back smoke chamber plates are cut by CNC plasma cutting machine and looks tidy and beautiful.
Easy operation and maintenance
Fully automatically operating, with automatically adjustment and protection of burning, water level, temperature and steam pressure.
Longer working life
Smoke tube and tube sheet connection is expanded first to eliminate the gap between them, then adopt automatic argon arc welding to relief the stress and expand boilers working life.
Longitudinal and girth joint adopt advanced automatic submerged-arc welding for good welding quality. All longitudinal and girth joint will have 100% radiographic inspection.
Fin tube us ND steel or stainless-steel material which avoid low temperature corrosion.
Inspection procedure point is set up to guarantee the sequence of expanding and welding, avoid cracking of the tube sheet holes.
Less fuel consumption
High quality aluminum silicate fiber is used with fire clay insulation, to control the boiler body temperature below 45℃ to control heat lost.
Sufficient steam storage room and heating area makes boiler to generate high quality steam and high thermal power.
Condenser is added to reuse the waste heat of the exhausted smoke to increase feeding water’s temperature and reduce emission temperature, which can increase the thermal efficiency above 98% and save operating cost.
|Model||Rated steam capacity（t/h）||Rated working pressure（Mpa）||Rated steam temperature（℃）||Maximum transport size(m)|
