The thermal oil heater is an important heating equipment for the hot melt curing, high-temperature steaming, drying, shaping and other production processes in the printing and dying industry. ZOZEN thermal oil heaters have advantages of high efficiency, good stability and ultra-low NOx emissions, which are favored and widely applied by textile, printing and dyeing enterprises at home and abroad.

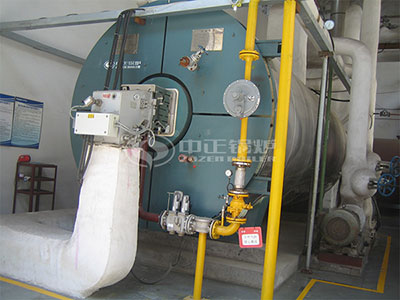

ZOZEN thermal oil heaters are operating at Hengtong Printing and Dyeing Group

ZOZEN gas/oil-fired thermal oil heaters help textile, printing and dyeing enterprises save energy and reduce emission

The thermal oil heater or organic heat carrier boiler transfers the heat via the heat medium oil. It has advantages of high temperature and low pressure and its working temperature can reach 320℃, which can meet the great demands for high temperature of textile, printing and dyeing enterprises. The thermal oil heat with a large thermal capacity and a good thermal inertia can ensure the temperature uniformity in the whole heating process, which is more suitable for textile, printing and dyeing enterprises to save costs and energy than the steam boiler.

ZOZEN gas/oil-fired thermal oil heater adopts the multi-circuit coil design with sufficient heating surface and good heat transfer effects. It has complete operation control and safety monitoring devices to precisely control the working temperature, which is convenient and safe. According to actual conditions of customers in the textile, printing and dyeing industries, ZOZEN adds the waste heat boiler, economizer, air preheater and other energy-saving devices at the end of flue gas duct. Via the recovery and utilization of high-temperature flue gas, the exhaust gas temperature can lower to below 90℃ and the boiler thermal efficiency can reach to over 95%.

In addition, the gas-fired thermal oil heater is packaged for shipment, which also puts forward high requirements for the manufacturer’s construction installation equipment. The weight of a set of 3 million kcal thermal oil heater can reach 14 tons. ZOZEN has the elevating capacity up to 90 tons and ZOZEN thermal oil heater has the capacity up to 24 million kcal, which can meet the demands of customers with different production scales.

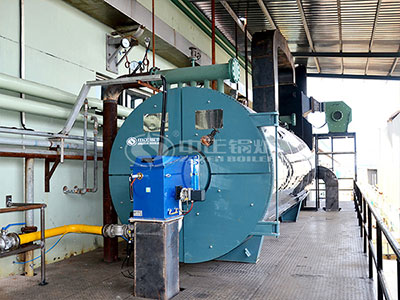

ZOZEN thermal oil heater room site at Huadi Textile Printing & Dyeing

The leading enterprise Baofang Printing and Dyeing became the partner of ZOZEN Boiler

Zhejiang Baofang Printing and Dyeing Co., Ltd. is an eco-friendly enterprise specialized in the research, development, production and sales of cotton real wax printed fabrics which are sold to West Africa and other countries.

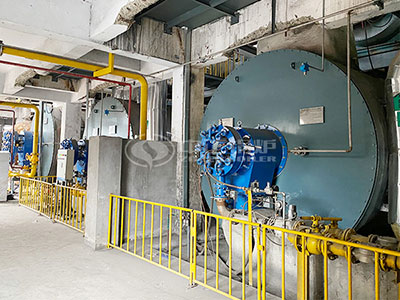

ZOZEN thermal oil heater is operating at Zhejiang Baofang Printing and Dyeing

The original heating equipment of Zhejiang Baofang Printing and Dyeing was a set of ZOZEN YLW series coal-fired thermal oil heater. In order to respond to the environmental protection policy, the company decided to introduce the gas-fired thermal oil heater which was more eco-friendly. Based on the former successful cooperation, Baofang was satisfied with the quality and services of ZOZEN Boiler, so it reached the cooperation with ZOZEN again.
