Introduction
Boiler Parameters
Thermal capacity: 1-4 t/h
Working pressure: 1.0-1.6 MPa
Available fuel: natural gas, coke oven gas, biogas, diesel, heavy oil, light oil, residual oil, etc.
Available industries: Chemical, food, cigarettes and tobacco, textile, building materials, hospital, heating etc.
Boiler features

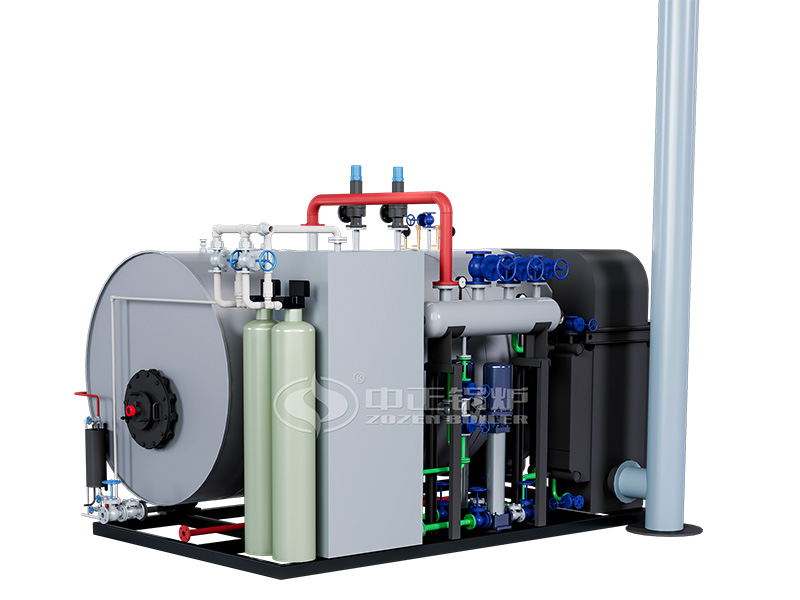

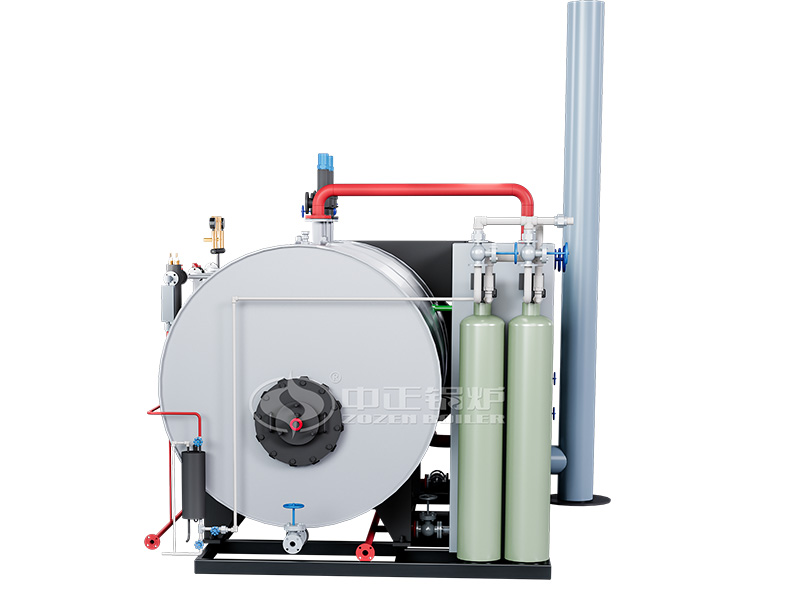

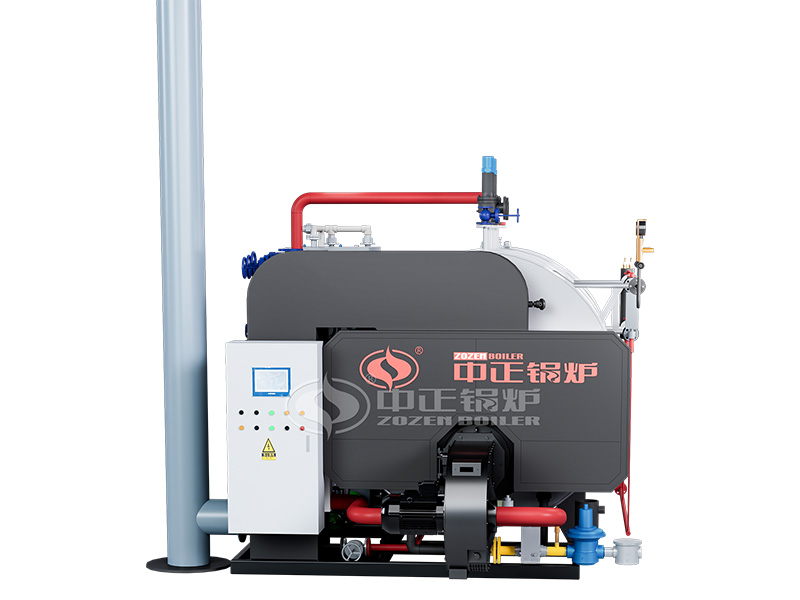

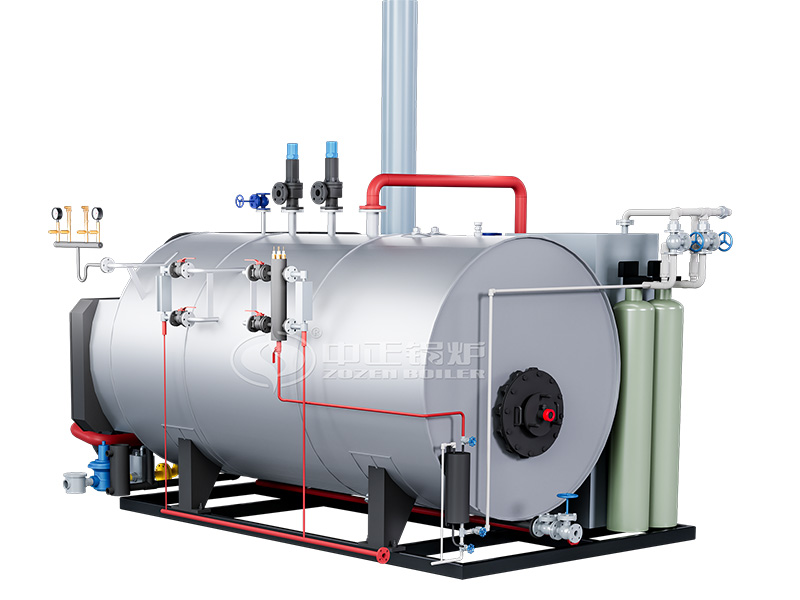

● ZOZEN Boiler's skid mounted boiler features an integrated design, with auxiliary machines and parts integrated on the same skid, occupying a small footprint and offering good mobility.
● No installation required, users only need to connect water, electricity, and gas, and it can be completed within one day, allowing for rapid deployment.
● Utilizes customized professional burners that integrate the boiler control system with the burner control system, improving the automation level as well as the energy-saving, environmental, and safety performance.
Configuration Inventory
Boiler Specification
| Model | Steam Capacity | Steam Pressure | Steam Temperature | Shipping Weight | Shipping Dimension | Heat Efficiency |
| WNS1-1.0-Y(Q) | 1 t/h | 1.0 Mpa | 184 ºC | 6.3 t | 5.00x2.25x2.50 (m) | >92% |
| WNS1-1.25-Y(Q) | 1 t/h | 1.25 Mpa | 194 ºC | 6.3 t | 5.00x2.25x2.50(m) | >92% |
| WNS1.5-1.0-Y(Q) | 1.5 t/h | 1.0 Mpa | 184 ºC | 8.1 t | 4.50x2.25x2.50 (m) | >92% |
| WNS1.5-1.25-Y(Q) | 1.5 t/h | 1.25 Mpa | 194 ºC | 8.1 t | 4.50x2.25x2.50 (m) | >92% |
| WNS2-1.0-Y(Q) | 2 t/h | 1.0 Mpa | 184 ºC | 10.1 t | 7.50x2.25x2.50 (m) | >92% |
| WNS2-1.25-Y(Q) | 2 t/h | 1.25 Mpa | 194 ºC | 10.1 t | 7.50x2.25x2.50(m) | >92% |
| WNS3-1.0-Y(Q) | 3 t/h | 1.0 Mpa | 184 ºC | 11.8 t | 8.50x2.25x2.50 (m) | >92% |
| WNS3-1.25-Y(Q) | 3 t/h | 1.25 Mpa | 194 ºC | 11.8 t | 8.50x2.25x2.50 (m) | >92% |
| WNS4-1.6-Y(Q) | 4 t/h | 1.25 Mpa | 194 ºC | 13.9 t | 10.50x2.25x2.50 (m) | >92% |
| WNS4-1.6-Y(Q) | 4 t/h | 1.6 Mpa | 204 ºC | 13.9 t | 10.50x2.25x2.50 (m) | >92% |
Oversea market

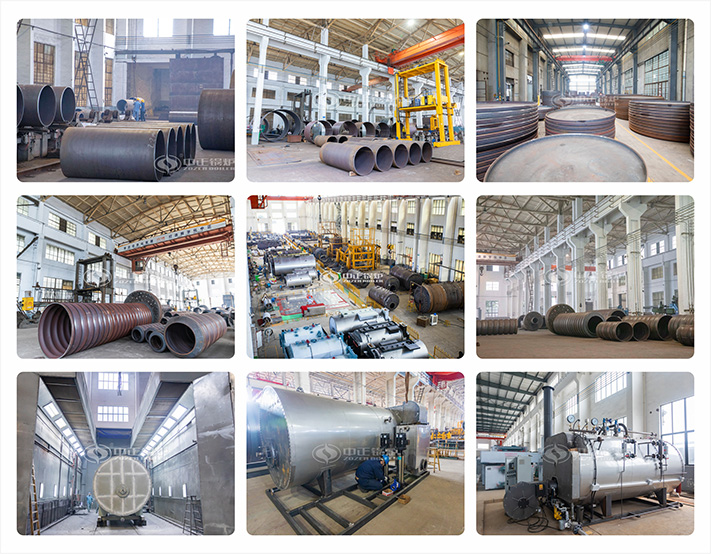

Workshop
