In the realm of pharmaceutical excellence, Xinhe Yuansheng Medicine Co., Ltd., a distinguished high-tech enterprise in Henan Province, has been a beacon of quality drug manufacturing. As the company's footprint expands and production demands surge, traditional energy supply mechanisms fall short in meeting the burgeoning needs. In a bid to enhance production efficiency and slash operational costs, Xinhe Pharmaceutical has embraced the 3.5-ton biomass-fired steam boiler offered by ZOZEN Boiler to cater to its daily production requisites in the pharmaceutical sector.

Application of ZOZEN Biomass-Fired Steam Boiler in the Pharmaceutical Industry

The pharmaceutical industry demands a reliable and high-quality steam supply for processes like drug drying, sterilization, and formulation. ZOZEN Boiler's SZL series biomass-fired steam boiler, renowned for its efficiency, eco-friendliness, and energy conservation attributes, perfectly aligns with the requirements of the pharmaceutical sector.

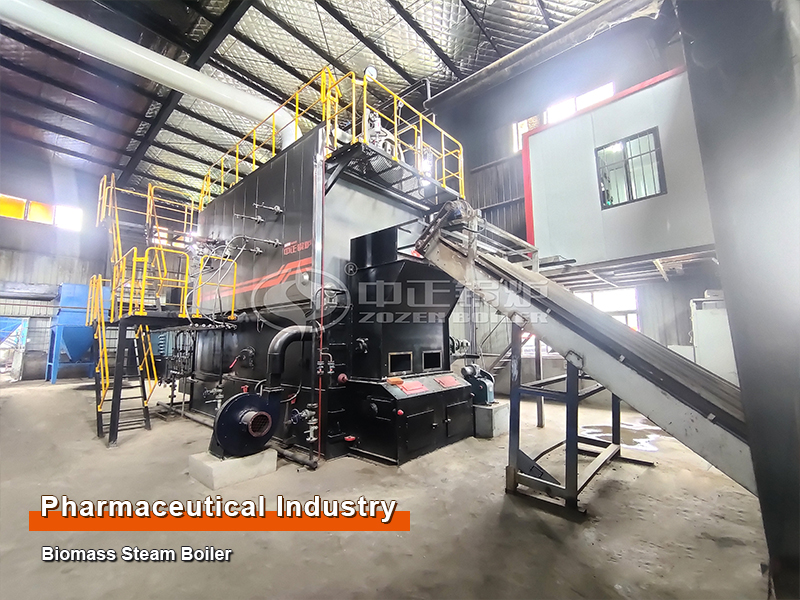

SZL series 3.5-ton biomass-fired steam boiler

The SZL series 3.5-ton biomass-fired steam boiler, crafted by Wuxi ZOZEN Boiler Co., Ltd. based on international advanced technologies and experiences, is a chain grate water tube boiler featuring a horizontal dual-drum, vertical layout structure. The boiler comprises two major components—the upper part serving as the heating surface and the lower part housing the combustion equipment. Surrounding the front portion of the boiler body are water-cooled walls connected to the upper drum and the lower drum, forming the combustion chamber to absorb radiant heat from the furnace. Positioned between the upper and lower drums at the rear end are convection tube bundles. After fuel combustion in the furnace, high-temperature flue gas passes through the convection tube bundles for secondary heat absorption, leading to a separate economizer before finally entering the dust collector and being discharged through the chimney.

Advantages of ZOZEN Biomass Boiler

1. Wide fuel adaptability: Capable of utilizing various fuels such as biomass pellets, rice husks, wood chips, corncobs, and sawdust, offering flexible fuel choices for enterprises.

2. Complete combustion: The chain grate and independent air compartment design of ZOZEN ensures thorough fuel combustion, enhancing combustion efficiency.

3. User-friendly operation: Advanced control systems enable automated fuel supply, ash removal, and slag discharge, significantly reducing the labor intensity of operators.

4. Full-lift safety valve: Strictly calculated emission volume of the safety valve; automatic pressure relief when system pressure exceeds the set value, ensuring boiler operation safety.

5. Extremely low-water-level electrode: In addition to the internationally mandated water level safety settings, the addition of extremely low-water-level electrodes for protection, interlocked with drums and induced draft fans, guarantees water level safety during boiler operation.

Client Testimonial - Xinhe Yuansheng Medicine Co., Ltd.

"Since installing ZOZEN's 3.5-ton biomass-fired steam boiler, our production efficiency has seen a remarkable boost. The boiler's stability and high efficiency have exceeded our expectations, coupled with easy operation and low maintenance costs. Most importantly, it has aided us in achieving green production, aligning with our commitment to environmental protection."

In conclusion, ZOZEN Boiler's SZL series 3.5-ton biomass-fired steam boiler has ushered in a new era of efficiency and sustainability for Xinhe Pharmaceutical, marking a paradigm shift towards eco-friendly and cost-effective pharmaceutical manufacturing practices.
