When it comes to reliable and efficient steam generation, few systems match the proven performance of a horizontal fire tube boiler. For decades, this classic design has been a cornerstone of industrial heating, valued for its simplicity, safety, and cost-effectiveness.

Part 1: Understanding the Horizontal Fire Tube Boiler

A horizontal fire tube boiler is defined by its fundamental operating principle: hot combustion gases flow through tubes that are surrounded by water. The heat from the gases is transferred through the tube walls to heat the surrounding water, ultimately producing steam. This "fire in the tubes" design is the opposite of a water tube boiler and offers distinct advantages.

Key Features of ZOZEN's Horizontal Fire Tube Boiler

Our WNS series horizontal fire tube boiler incorporates several advanced features that set it apart from traditional designs:

Three-Pass Wetback Design: The WNS series is a boiler shell type 3 passes wetback oil/gas fired boiler. This multi-pass layout allows the hot gases to travel a longer path, maximizing heat transfer and ensuring that as much energy as possible is extracted from the fuel before the flue gas is exhausted.

Corrugated Furnace: The first-pass furnace is corrugated. This innovative shape not only increases the surface area for heat transfer but also enhances the strength and elasticity of the furnace, allowing it to better handle thermal expansion and contraction.

Threaded Smoke Tubes: For the second and third passes, the horizontal fire tube boiler utilizes threaded smoke tubes. These tubes are designed to create turbulence in the flue gas flow, which significantly extends the gas residence time.

Economizer and Condenser: To push efficiency even higher, the WNS series is compatible with an economizer and a condenser. These devices recover additional heat from the flue gas, further reducing exhaust temperature and boosting overall system efficiency.

The Advantages of a Horizontal Fire Tube Boiler

A well-designed horizontal fire tube boiler like the ZOZEN WNS series offers several compelling benefits:

High Thermal Efficiency: Thanks to its three-pass design, corrugated furnace, and threaded smoke tubes (which are 1.4 times more efficient than regular smoke tubes), a modern horizontal fire tube boiler can achieve a thermal efficiency of ＞98% . This translates directly into significant fuel savings.

Safe and Reliable Operation: The large water volume in a horizontal fire tube boiler acts as a thermal buffer, making it less sensitive to sudden load changes and providing a safe, stable steam supply. Furthermore, the pressure vessel is designed with robust safety features.

Eco-Friendly Performance: Equipped with a low-nitrogen burner and advanced combustion technology, this horizontal fire tube boiler can limit NOx emissions to ≤30 mg/Nm³, helping your plant meet stringent environmental regulations.

Easy Maintenance: Features like the hinged smoke box door make the internal tubes and furnace easily accessible for inspection and cleaning, reducing downtime and maintenance costs.

Fully Automatic Safe Operation: The WNS series is equipped with an advanced control system and supports IoT technology for remote monitoring and expert management, enabling unattended and safe operation.

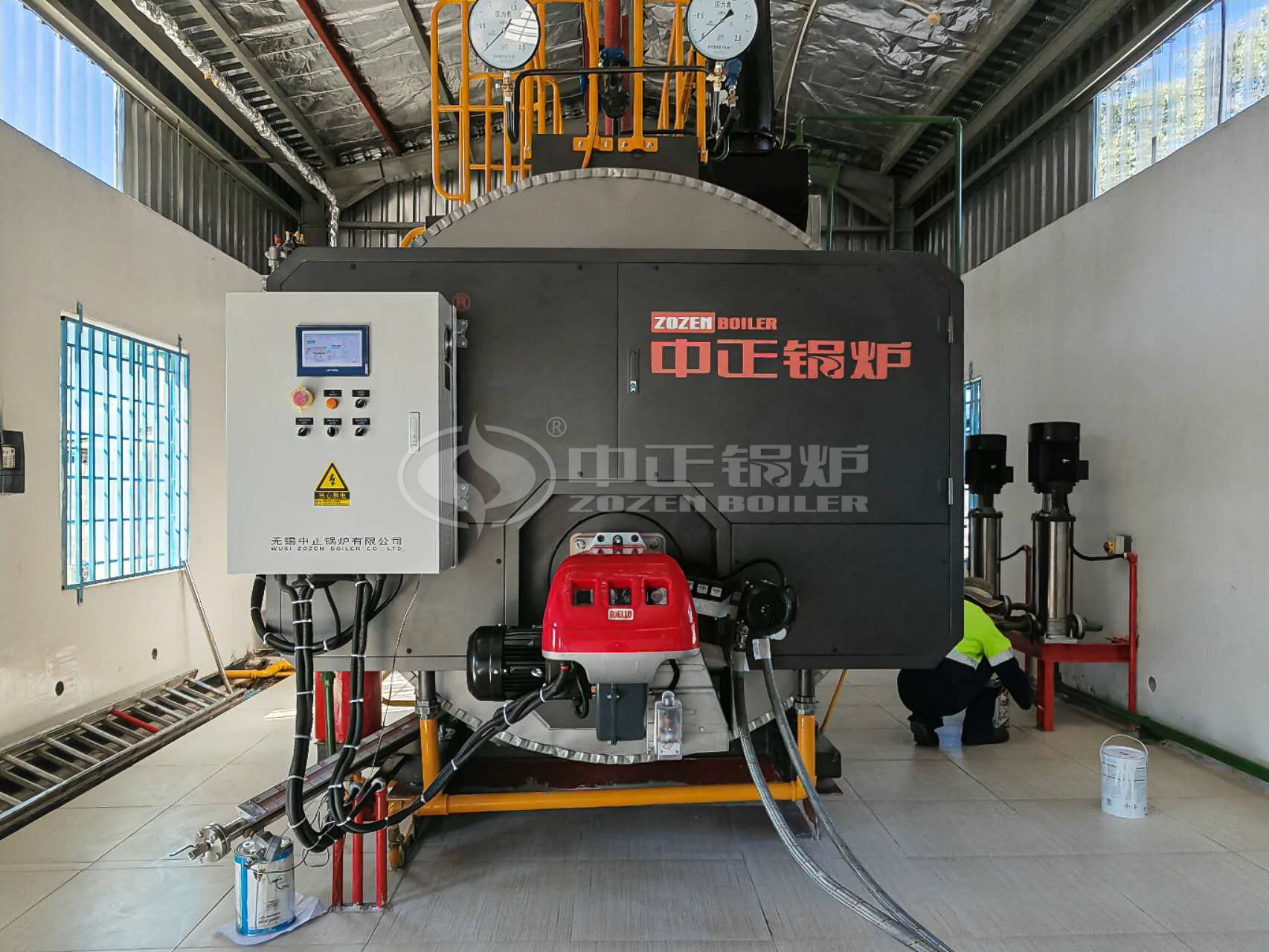

 horizontal fire tube boiler

Applications of Horizontal Fire Tube Boiler

The versatility of a horizontal fire tube boiler makes it an excellent choice for a wide range of industries. This boiler is ideal for heat supplying, chemical plants, food processing, textile mills, printing and dyeing factories, cigarettes and tobacco manufacturing, fodder production, pharmacies, building material factories, breweries, rubber processing, and hospitals.

Part 2: How to Choose the Right Horizontal Fire Tube Boiler?

Selecting the correct horizontal fire tube boiler for your plant requires careful evaluation of your specific needs.

What is Your Required Steam Capacity? The WNS series horizontal fire tube boiler offers a thermal capacity ranging from 1 to 20 t/h. Accurately calculate your peak and average steam demand. Choosing a boiler that is too large will waste fuel, while one that is too small will struggle to meet production needs.

What Fuel Will You Use? A flexible horizontal fire tube boiler can run on various fuels. The ZOZEN WNS series is compatible with natural gas, coke oven gas, biogas, diesel, heavy oil, light oil, and crude oil. Your local fuel availability and cost will be a major deciding factor.

What Working Pressure Do You Need? The WNS series operates at a working pressure of 0.7 to 2 MPa. Your processes will dictate the required steam pressure. A horizontal fire tube boiler is particularly well-suited for low to medium pressure applications, which cover the majority of industrial heating needs.

When Should You Choose a Horizontal Fire Tube Boiler?

You should consider a horizontal fire tube boiler like the ZOZEN WNS series if:

Your facility requires a steady, consistent steam supply for production.

Your steam demand is within the 1-20 t/h range.

You need a low to medium pressure boiler (0.7-2 MPa).

You are looking for a solution that is highly efficient, easy to operate, and cost-effective in terms of both initial investment and long-term maintenance.

You prefer a packaged boiler that arrives pre-assembled, significantly reducing on-site installation time and costs.

Part 3: Why Choose ZOZEN as Your Boiler Partner?

Finding a trustworthy manufacturing partner is a key step in any boiler purchase. ZOZEN Boiler has earned a strong reputation as a reliable, high-quality provider in the industrial heating industry. Since 1988, we have focused on advancing boiler technology and improving manufacturing standards. Our modern factory in Wuxi covers 150,000 square meters, with an annual production capacity of over 25,000 steam tons. To date, we have served more than 15,580 customers across the globe. Our dedication to quality is reflected in our comprehensive certifications, including the PRC Grade A Boiler License, ASME and ISO9001:2015. We also offer a full range of services beyond equipment supply, including custom solution design and on-site installation supervision, ensuring that your boiler system is set up for success from the very start.

In short, a well-engineered horizontal fire tube boiler delivers consistent, efficient steam for diverse industrial applications. Its combination of high thermal efficiency, low emissions, and simple maintenance makes it a practical choice for many facilities. When you choose ZOZEN's WNS series, you are selecting a solution built on decades of engineering experience and supported by a dedicated service team. Ultimately, the right boiler is not just about the machine itself—it is about the performance, reliability, and long-term value it brings to your operation.
