As global supply chains undergo restructuring and Chinese businesses accelerate their international expansion, Vietnam has emerged as a hotspot for overseas investments. Leveraging its strategic location and growth potential, many Chinese enterprises are choosing Vietnam as a key destination for expansion. In this context, ZOZEN Boiler has been at the forefront, providing SZL series 6 tph biomass steam boilers to Chinese businesses venturing into Vietnam with its advanced technology and top-quality products.

Client Background:

One such instance is a foam material factory in Vietnam, established by Chinese investors. This factory aims to leverage the abundant local biomass resources to produce high-quality foam materials. The factory's boiler requirements are stringent, calling for high efficiency, environmental sustainability, and adaptability to diverse biomass fuels.

Product Description:

The SZL series 6 tph biomass steam boiler by ZOZEN Boiler is a meticulously designed chain grate water tube boiler, featuring a horizontal dual-drum and vertical layout structure. Comprising upper and lower sections, the upper part serves as the heating surface, while the lower part houses the combustion equipment. The front section of the boiler body is surrounded by water-cooled walls, forming the combustion chamber to absorb radiant heat. The rear end features convective tube bundles situated between the upper and lower drums, where high-temperature flue gas passes through for heating before entering the economizer and finally the dust collector for emission through the chimney.

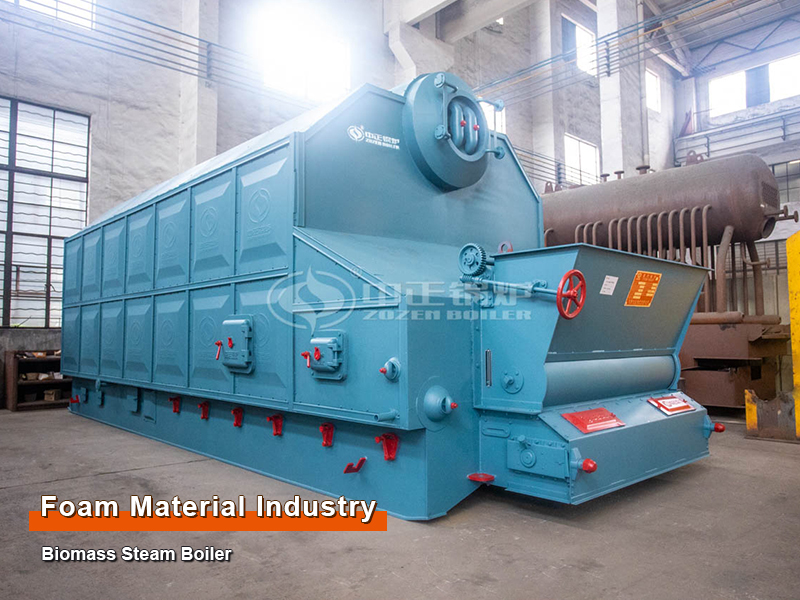

two units of SZL series 6 tph biomass steam boilers

Customer Solution:

To meet the foam material factory's needs, ZOZEN Boiler provided two units of SZL series 6 tph biomass steam boilers, each boasting a steam output of 6 tons per hour. These boilers, designed with international advanced technology and expertise, offer high efficiency, environmental friendliness, and operational simplicity, standing out as star products from ZOZEN Boiler.

•  Wide fuel adaptability: Suitable for biomass pellets, rice husks, wood chips, corn cobs, sawdust, and more.

•  Efficient fuel combustion: The chain grate design and independent air chamber ensure thorough fuel combustion.

•  Thermal efficiency >86%: The boiler's water-cooled wall tube structure and customized system maximize the radiant surface area.

•  Simple operation and maintenance: Advanced control systems automate fuel supply, ash removal, and slag discharge operations.

Achievements:

By leveraging ZOZEN Boiler's SZL series 6 tph biomass steam boilers, the foam material factory in Vietnam has achieved:

• Significant improvement in production efficiency: The boilers' high steam output and stability ensure continuous operation of the production line.

• Reduced operating costs: High thermal efficiency reduces energy consumption, thus lowering production costs.

• Compliance with environmental standards: Clean flue gas emissions align with Vietnam's environmental regulations, enhancing the company's reputation.

In conclusion, the deployment of ZOZEN Boiler's SZL series 6 tph biomass steam boilers has not only boosted operational efficiency and cost-effectiveness for the foam material factory in Vietnam but has also contributed to meeting environmental standards, underlining the commitment to sustainability and excellence in the industry.
