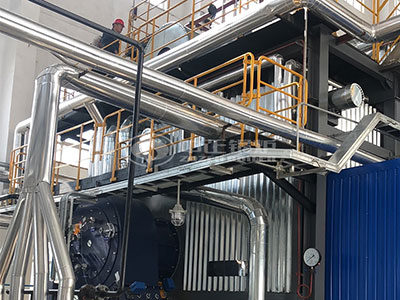

Case name: ZZ series mid-temperature and mid-pressure gas-fired superheated steam boiler

Company name: Heilongjiang Changfeng Coking Co., Ltd.

Location: Jidong County, Heilongjiang

Equipment: ZZ45-3.82-450-Q

Project boiler medium: Steam

Capacity: 45 tph

Customer Feedback

This set of gas-fired boiler produced by ZOZEN Boiler was the core equipment of our company’s 6 MW coal gas thermal power project. It was highly efficient, safe and stable to provide a solid guarantee for the normal operation of the project. We felt thankful for all of these.

Case Introduction

Heilongjiang Changfeng Coking Co., Ltd. mainly produces coke, tar, crude benzene and other chemical products. In the second half year of 2019, the company invested more than 60 million RMB to launch a 6 MW coal gas thermal power project which required a set of 45 tph gas-fired boiler and the 6 MW condensing steam turbine generator set. This set of steam boiler with a rated pressure of 3.82 Mpa and a steam temperature of 450℃ is a kind of A-grade mid-temperature and mid-pressure boiler, which sets high requirements for boiler design and manufacture.

This boiler has an O-type structure, which has the advantages of compact structure and good furnace flame filling degree. It is also convenient for on-site installation and its main engine has lower costs. What’s more, depending on a strong R&D and design team, ZOZEN Boiler has overcome the difficulties in the design of mid-temperature and mid-pressure gas-fired boiler to effectively solve the safety problems for boiler operation. For instance, there can be fatal problems such as insufficient superheating temperature, overtemperature and even tube explosion if the structure of superheater is not designed reasonable. Finally, this set of superheated steam boiler also shows the advanced manufacturing technology and equipment of ZOZEN Boiler. The boiler drum whose thickness can reach 60 mm is processed by advanced CNC plates rolling machine and drum drilling machine, which can ensure the working efficiency, improve the drum finish degree and reduce the size error. At present, the project of Changfeng Coking is successfully put into use and the boiler is also operating stably in the project.
