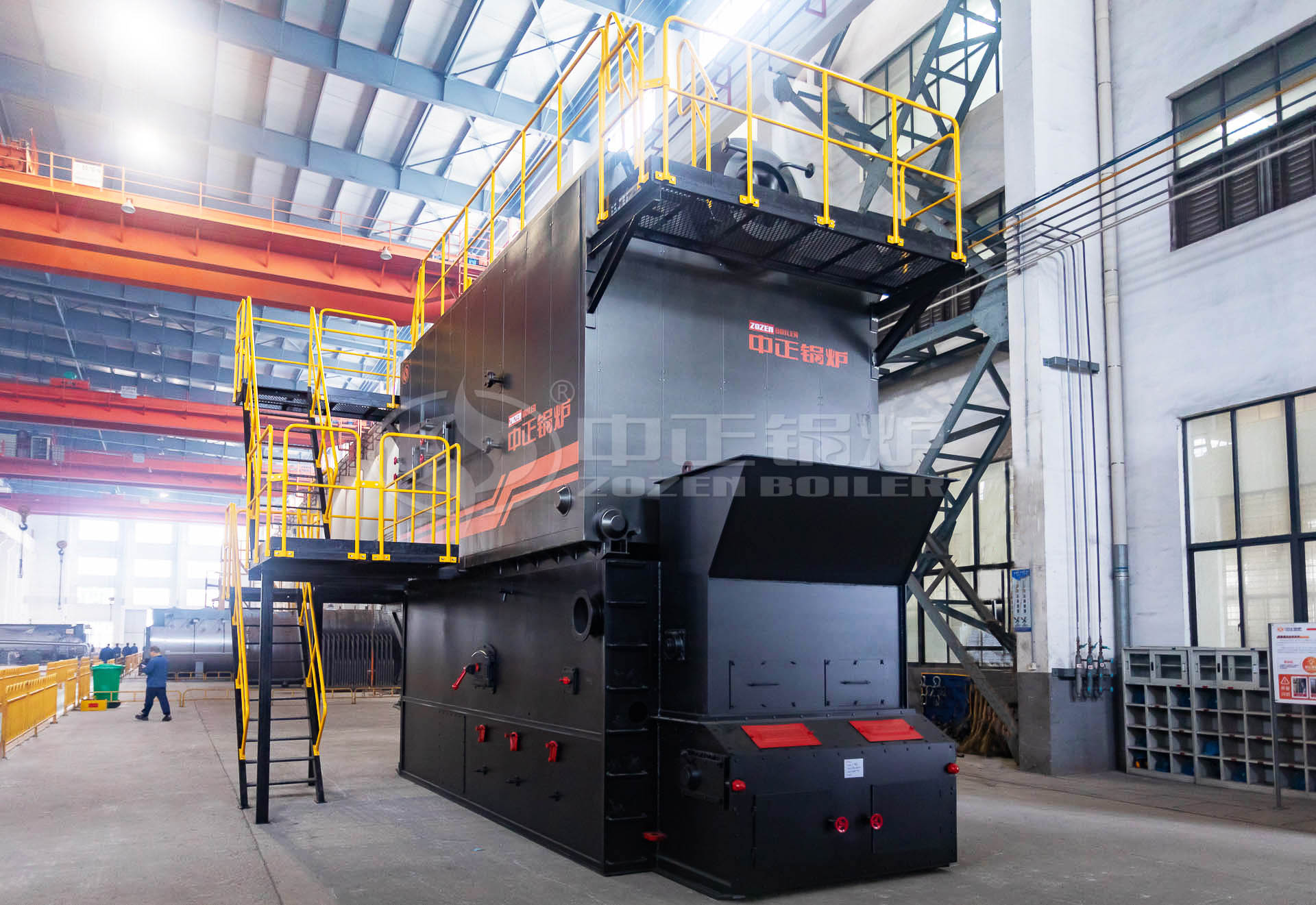

Coal Steam Boilers
  • Product Name:

    5 Ton Coal Fired Steam Boiler for Dehydrator

  • Contact Us  Contact Us:
  • sales@zozen.com

Product thermal capacity: 2 – 20 t/h

Working pressure:  1.0 - 2.5 MPA

Outlet temperature: 170 - 225℃

Available fuel:  Bituminous coal,lean coal,anthracite

Available industries:    Heating, chemical, food, tobacco, textile, printing and dyeing, feed, medicine, building material, wine, rubber, hospital

DZL coal-fired boiler has a wide range of fuel applicability, equipped with advanced automatic control system, convenient and fast operation and maintenance, reliable and durable, and guarantee the long-term stable operation of the boiler. ZOZEN DZL coal-fired boiler adopts a unique design and production process, and its thermal efficiency is 5% higher than that of conventional products.




Technical advantages

Wide fuel adaptability

Applicable to a wide range of fuels including bituminous coal, lean coal, anthracite, etc.


Customized solutions save money and time

Save your money and time with custom designed and engineered feeding system, slag discharge system, flue gas treatment system and boiler house layout plans.


Higher thermal efficiency

Thermal efficiency at least 5% higher than normal systems, annual fuel cost savings for each 10 tph boiler as high as $75,000.


High level of automation

Easy maintenance,  high level of automation that requires less in volvement of operational and maintenance personnel.


Advanced control system

Ensure stable operation while saving investment cost for you with a reasonable selection.




Product Parameters

ModelRated evaporationRated working pressure(MPa)Rated steam temperatureThermal efficiency(%)Maximum transport size(m)
(L×W×H)
DZL2-1.0-AⅡ21.0184795.7×2.5×3.5
DZL2-1.25-AⅡ21.25194795.7×2.5×3.5
DZL2-1.57-AⅡ21.57204795.7×2.5×3.5
DZL2-2.45-AⅡ22.45225795.7×2.5×3.5
DZL4-1.25-AⅡ41.25194796.3×2.6×3.6
DZL4-1.57-AⅡ41.57204796.3×2.6×3.6
DZL4-2.45-AⅡ42.45225796.3×2.6×3.6
DZL6-1.25-AⅡ61.25194797.3×3.2×3.6
DZL6-1.60-AⅡ61.6205797.3×3.2×3.6
DZL10-1.25-All101.25194797.2×3.3×3.6
DZL10-1.60-All101.6205797.2×3.3×3.6
DZL15-1.25-All151.25194798.8×3.7×3.7
DZL15-1.60-All151.6205798.8×3.7×3.7
DZL20-1.25-All201.25194799.7×3.4×3.7
DZL20-1.60-All201.6205799.7×3.4×3.7

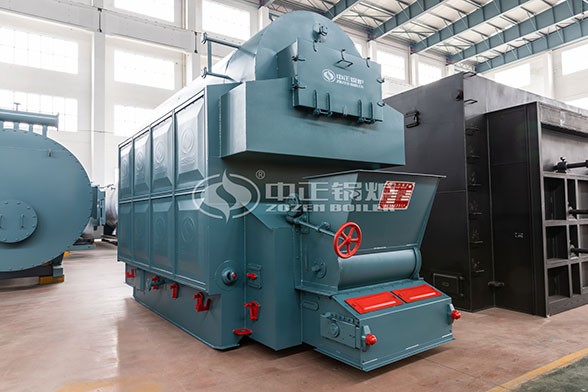

Workshop
