Gas/Oil Thermal Oil Boilers
  • Product Name:

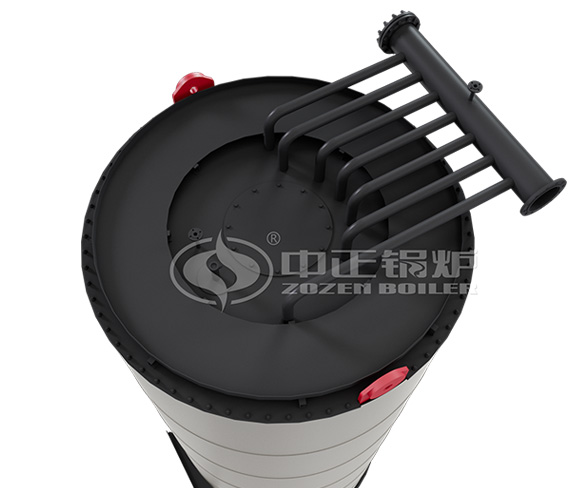

    RYQ series molten salt heater

  • Contact Us  Contact Us:
  • sales@zozen.com

Introduction


Boiler Parameters

Thermal capacity: 1200-35000 kW

Working pressure: 0.8-1.6 MPa

Outlet temperature: 450 °C

Available fuel: Natural gas, liquefied gas, city gas, heavy oil, light oil, diesel, bituminous coal, anthracite, biomass particles

Available industries: Chemical, fertilizer, melamine, aluminium oxide, solid caustic soda, solar power and other high temperature heating technology


Boiler features


ZOZEN's molten salt heaters utilize a heat medium of molten potassium nitrate and sodium nitrite. The heater elevates the molten salt beyond its melting point, enabling a circulation pump to propel it into a flowing and recyclable system. This medium is then further heated within the heat carrier furnace for continuous use. It typically operates between 400-550℃, with a maximum of up to 600℃.


Boiler Advantages

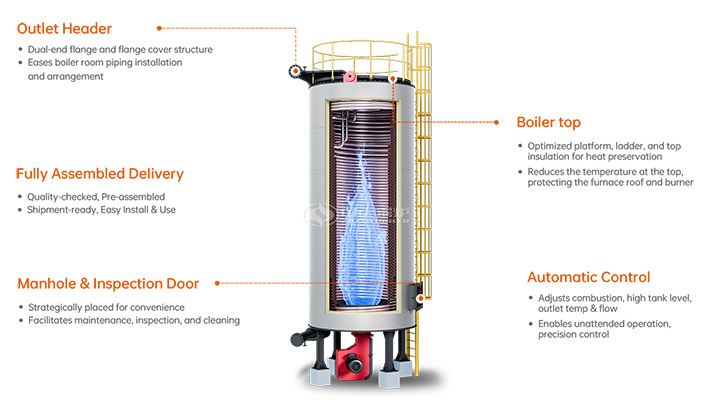

Working Principal


ZB-RYQ-Working Principal.jpg


Boiler Specification


Model

Rated thermal power (KW)

Rated thermal power (×104kcal/h)

Top media temperature (℃)

Rated working pressure (MPa)

Thermal efficiency (%)

RYL/Y(Q)-100Y(Q)1200100450195
RYL/Y(Q)-200Y(Q)2400200450195
RYL/Y(Q)-300Y(Q)3500300450195
RYL/Y(Q)-500Y(Q)6000500450195
RYL/Y(Q)-750Y(Q)9000750450195
RYL/Y(Q)-1000Y(Q)120001000450195
RYL/Y(Q)-1250Y(Q)140001250450195
RYL/Y(Q)-1500Y(Q)180001500450195
RYL/Y(Q)-1750Y(Q)200001750450195
RYL/Y(Q)-2000Y(Q)240002000450195
RYL/Y(Q)-2500Y(Q)300002500450195
RYL/Y(Q)-3000Y(Q)350003000450195

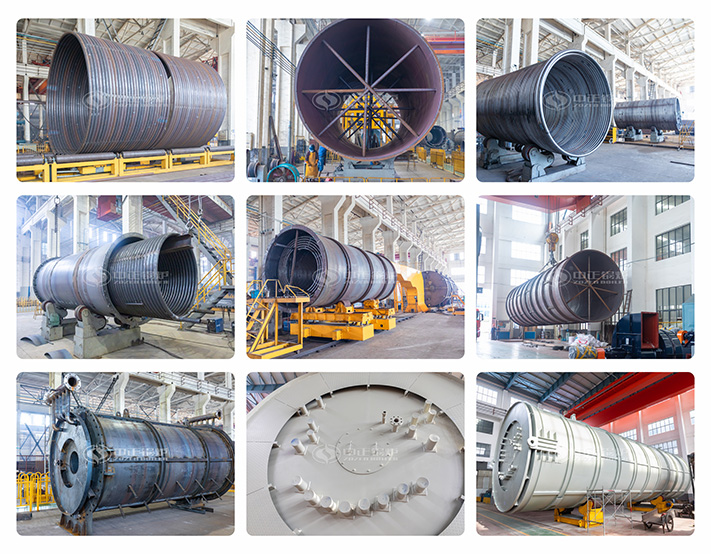

Workshop
