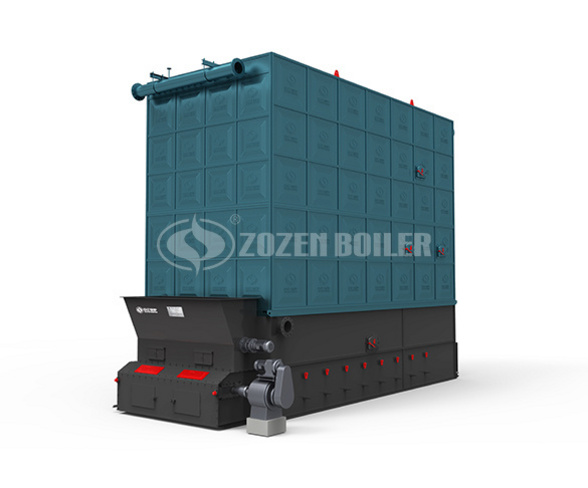

Technical Advantages
Long Service Life

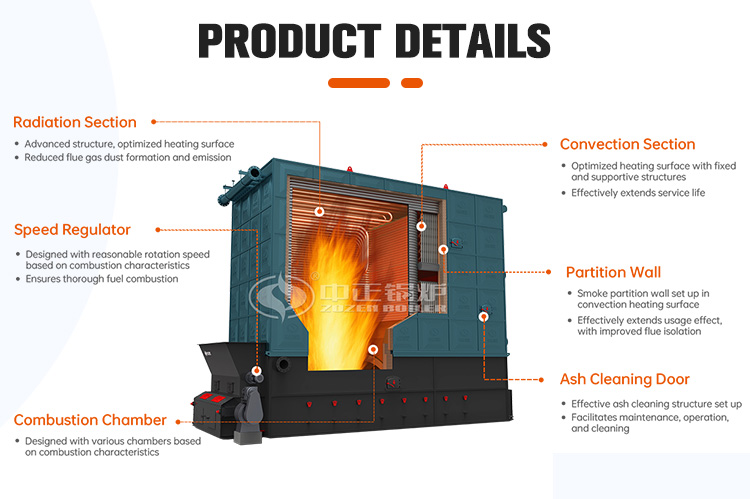

Convective heating surface with effective fixed and structural support, better extend the service life of the boiler.
Simply Operation
The patented combustion arch technology makes different types of fuels easy to burn.
Reduce Fuel Consumption
The interior is made of high quality firebrick and the middle is made of high quality perlite.Control the furnace temperature below 50℃ to minimize the loss.
The furnace body adopts double coil, heating surface is sufficient.
Boiler specification
| Model | Rated thermal power (KW) | Rated thermal power (x104kcal/h) | Design working temperature(≤℃) | Rated working pressure(MPa) | Thermal efficiency(≥%) | System installation power(KW) | Maximum transport size(m) (L×W×H) |
| YLW-1400M/AⅡ | 1400 | 120 | 320 | 0.8 | 80 | 55 | 5.0×2.3×2.5 |
| YLW-1800M/AⅡ | 1800 | 160 | 320 | 0.8 | 80 | 63 | 5.6×2.3×2.8 |
| YLW-2400M/AⅡ | 2400 | 200 | 320 | 0.8 | 80 | 76 | 6.5×2.5×2.8 |
| YLW-2800M/AⅡ | 2800 | 240 | 300 | 0.8 | 80 | 85 | 6.5×2.6×3.2 |
| YLW-3500M/AⅡ | 3500 | 300 | 320 | 0.8 | 80 | 105 | 7.5×2.6×3.2 |
| YLW-4200M/AⅡ | 4200 | 360 | 320 | 0.8 | 80 | 125 | 7.4×2.9×3.3 |
| YLW-4600M/AⅡ | 6000 | 500 | 320 | 0.8 | 80 | 155 | 8.4×3.4×3.3 |
| YLW-6000M/AⅡ | 7000 | 600 | 320 | 1 | 80 | 170 | 9.0×3.4×3.4 |
| YLW-7000M/AⅡ | 8200 | 700 | 320 | 1 | 80 | 193 | 9.8×3.3×4.1 |
| YLW-8200M/AⅡ | 4600 | 400 | 320 | 1 | 80 | 150 | 8.0×2.9×3.4 |
| YLW-9400M/AⅡ | 9400 | 800 | 320 | 1 | 80 | 160 | 9.8×3.5×4.1 |
| YLW-10500M/AⅡ | 10500 | 900 | 320 | 1 | 80 | 160 | 10.5×3.5×4.1 |
| YLW-12000M/AⅡ | 12000 | 1000 | 320 | 1 | 80 | 260 | 11.2×3.6×4.1 |
| YLW-14000M/AⅡ | 14000 | 1200 | 320 | 1 | 80 | 320 | 10.5×4.0×3.5 |
| YLW-16500M/AⅡ | 16500 | 1400 | 320 | 1 | 80 | 380 | 11.5×4.3×3.5 |
| YLW-18000M/AⅡ | 18000 | 1600 | 320 | 1 | 80 | 450 | 11.5×4.5×3.5 |
| YLW-21000M/AⅡ | 21000 | 1800 | 320 | 1 | 81 | 520 | 11.5×4.5×3.9 |
| YLW-23300M/AⅡ | 23300 | 2000 | 320 | 1 | 81 | 600 | 11.5×3.0×4.0 |
| YLW-26000M/AⅡ | 26000 | 2200 | 320 | 1 | 81 | 700 | 11.5×3.0×4.0 |
| YLW-29200M/AⅡ | 29200 | 2500 | 320 | 1 | 81 | 825 | 12.0×3.3×4.2 |
