Established in 2009 in Chuzhou City, Anhui Province, Chuzhou Xinrong Chemical Technology Co., Ltd. is a key player in the chemical raw materials and products manufacturing sector. Specializing in the production of chemical products such as methanol, ethanol, ethyl acetate, acetone, and isopropanol, Xinyuan Chemical sets stringent requirements for production equipment, particularly in terms of energy efficiency and environmental performance. Recently, the company opted to purchase a WNS series 1 tph gas-fired steam boiler from ZOZEN Boiler to further enhance production efficiency and environmental standards.

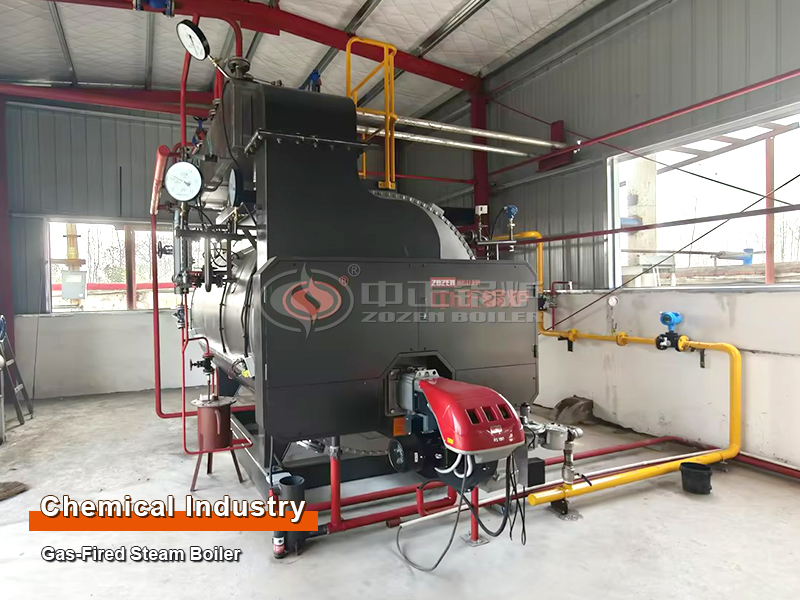

1 tph gas-fired steam boiler

The WNS series gas-fired steam boiler parameters:

Capacity: 1 - 20 t/h

Working pressure: 0.7 - 2 MPa

Applicable fuels: Natural gas, coke oven gas, biogas (gaseous fuels), diesel, heavy oil, light oil, residual oil (liquid fuels)

Application industries: Heating, chemical, food, tobacco, textile printing and dyeing, feed, pharmaceutical, building materials, brewing, rubber, hospitals

The WNS series 1 tph gas-fired steam boiler by ZOZEN Boiler is a shell-type three-pass wet-back oil/gas-fired boiler. The boiler operates automatically, with the fuel atomized by the burner forming a torch inside the full-wave furnace and transferring radiant heat through the furnace wall, constituting the first pass. The high-temperature flue gas generated during combustion converges in the return combustion chamber, transitions into the second pass—the threaded smoke tube bundle area—where convective heat transfer occurs, gradually lowering the gas temperature before reaching the front smoke box. Subsequently, the gas turns to the third pass—the light pipe bundle area—then passes through the rear smoke box into the condensing economizer and chimney before being discharged into the atmosphere. This series of products is characterized by safety, reliability, high efficiency, energy conservation, environmental friendliness, ease of maintenance, durability, and fully automatic intelligent control.

As a chemical enterprise, Chuzhou Xinrong Chemical Technology requires stable and efficient heat sources to support its production processes while meeting the increasingly stringent environmental regulations in the chemical industry. The core requirements presented by the customer during equipment selection were:

1. High Thermal Efficiency: 1 tph gas-fired steam boiler needs to provide more efficient steam support with lower fuel consumption to reduce production costs.

2. Superior Environmental Performance: Emissions from the boiler must meet or exceed national environmental standards to minimize environmental impact.

3. Stable Operation: The continuous and precise demand for thermal energy in chemical production necessitates long-term stable boiler operation.

The ZOZEN Boiler WNS series 1 tph gas-fired steam boiler, through optimized internal structure and the use of corrugated furnace design and threaded smoke tubes, not only increases the heat exchange area but also significantly enhances heat transfer efficiency. Compared to similar products on the market, ZOZEN Boiler's thermal efficiency exceeds 100%, far surpassing the industry average. Additionally, the boiler system is equipped with advanced low-nitrogen burners, ensuring NOx emissions are below 30mg/Nm³, well below national environmental standards.

In conclusion, Chuzhou Xinrong Chemical Technology's decision to choose ZOZEN Boiler's 1 Tph gas-fired steam boiler exemplifies their commitment to operational efficiency and environmental responsibility. This investment is a testament to their dedication to sustainable production practices and underscores the importance of energy efficiency in their manufacturing processes.
