Part 1: The Impact of Flue Gas Flow Design on Boiler Efficiency

In the competitive landscape of industrial steam generation, the design of flue gas flow paths plays a decisive role in determining both thermal efficiency and operational fuel costs. A three pass steam boiler is engineered to maximize heat absorption by extending the residence time of flue gas within the boiler unit before it is discharged to the atmosphere. Unlike single-pass or two-pass designs that allow a significant portion of thermal energy to escape unused, a well-designed three pass steam boiler forces the combustion gases to travel through three distinct heat exchange zones, ensuring that high thermal energy is transferred to the water or steam. For plant managers and procurement professionals, understanding the operating principle of the three pass steam boiler is essential for making energy-efficient and cost-effective equipment selections that will deliver long-term operational savings and rapid return on investment.

Part 2: Definition and Structural Design of Three Pass Steam Boiler

A three pass steam boiler refers to a boiler design in which the high-temperature flue gas undergoes three separate passes or circuits within the boiler shell before being exhausted through the chimney. This multi-pass design is the cornerstone of high-efficiency fire-tube boiler technology.

Pass 1: Radiant Heat Exchange in the Furnace

In the first pass, fuel (natural gas, LPG, diesel, or heavy oil) is atomized and injected into the corrugated furnace by the burner. The corrugated furnace acts as the primary radiant heat exchange surface. Its wave-shaped design enhances both structural strength and heat transfer efficiency. The high-temperature flame radiates heat directly through the furnace wall to the water surrounding it. This is where a three pass steam boiler achieves its most intensive heat absorption, capturing the highest-temperature energy before it can be lost.

Pass 2: Convective Heat Exchange in Threaded Smoke Tubes

After exiting the furnace, the high-temperature flue gas enters the reversal chamber and then flows into the second pass—a bundle of threaded smoke tubes. These threaded tubes are a core heat transfer element in ZOZEN's three pass steam boiler design, providing 1.4 times the heat transfer efficiency of regular smooth smoke tubes. The turbulence created by the thread pattern extends flue gas residence time, significantly enhancing convective heat exchange before the gases proceed to the next stage.

Pass 3: Final Heat Recovery in Smooth Tube Bundle

In the third pass, the flue gas returns to the front smoke box, turns direction, and enters a bundle of smooth tubes for final heat exchange. By the time the gases exit the three pass steam boiler through the rear smoke box and chimney, their temperature has been reduced to near-ambient levels, ensuring maximum thermal energy extraction. An economizer and condenser can be added to further recover waste heat, boosting overall high thermal efficiency.

ZOZEN WNS Series – The Premier Three Pass Steam Boiler Solution

As a leading industrial boiler manufacturer with 38 years of experience, ZOZEN has perfected the three pass steam boiler in its WNS series. This shell-type, wet-back, three-pass boiler covers a thermal capacity of 1 to 20 t/h with working pressures from 0.7 to 2.0 MPa and steam temperatures from 170°C to 204°C. It burns natural gas, LPG, biogas, diesel, and heavy oil. Thermal efficiency reaches 98% with an economizer and condenser, while an ultra-low NOx burner option keeps emissions at or below 30 mg/Nm³. This combination of capacity, fuel flexibility, high efficiency, and low emissions makes the WNS series a reliable choice for food processing, textile mills, chemical plants, and hospitals.

WNS series Structural Features and Advantages:

1. Large furnace design with sufficient steam storage and heating surface area, ensuring high-quality steam output.

2. Corrugated furnace enhances flue gas disturbance and improves heat transfer while providing furnace structural elasticity.

3. Threaded smoke tubes extend flue gas residence time and are 1.4× more efficient than regular smoke tubes.

4. Hinged smoke box structure provides excellent sealing, easy maintenance, inspection, and cleaning access.

5. Integrated economizer and condenser finned tubes further boost thermal efficiency beyond 98%.

6. Advanced PLC-based control system supports IoT remote monitoring and unmanned operation.

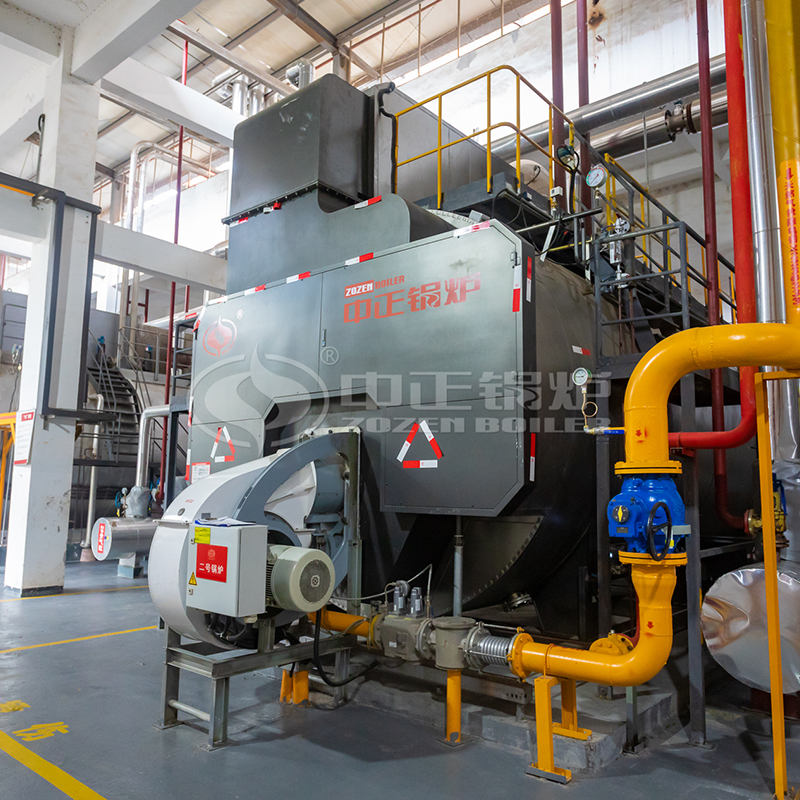

Three pass steam boiler: WNS series gas/oil steam boiler

Part 3: Application Scenarios and Real-World Case Study of Three Pass Steam Boiler

The three pass steam boiler is ideally suited for a wide range of industrial applications where consistent, high-quality steam is critical. Typical industries include food processing, chemical manufacturing, textile production, printing and dyeing, pharmaceuticals, building materials, breweries, rubber processing, and hospitals. In each of these sectors, the three pass steam boiler delivers reliable performance with minimal fuel waste.

Real Project Case: ZOZEN exported a three pass steam boiler to Ecuador for a corrugated paper packaging plant. The customer chose a 10 t/h WNS series heavy oil fired three pass steam boiler with a working pressure of 1.6 MPa. This three pass steam boiler features a large-diameter corrugated furnace design, which increases heat transfer area and provides sufficient space for complete fuel combustion. The three-pass structure of this three pass steam boiler ensures that high-temperature flue gas travels through the furnace and two tube passes before exiting, maximizing heat absorption and improving thermal efficiency. As a result, this three pass steam boiler helps the customer reduce daily operating costs while providing stable heat for corrugating, bonding, and drying processes. The customer praised ZOZEN's professional support during the early communication stage.

Part 4: ZOZEN's Technical Expertise in Three Pass Steam Boiler Manufacturing

With a manufacturing history dating back to 1988, ZOZEN has accumulated nearly four decades of expertise in the design and production of the three pass steam boiler. The company's WNS series represents the mature application of three-pass technology, refined through thousands of installations worldwide.

Certifications and Quality Assurance:

ZOZEN holds ASME "S" and "U" stamps for power boilers and pressure vessels, CE certification for European market compliance, ISO 9001:2015 quality management system certification, and the PRC Grade A Manufacture License of Special Equipment for boilers.

Core Heat Transfer Technology:

The three pass steam boiler design incorporates ZOZEN's proprietary heat transfer elements: the corrugated furnace for enhanced radiant heat absorption and the threaded smoke tube, which delivers 1.4 times the heat transfer efficiency of conventional smooth tubes. These innovations are the result of continuous R&D investment and real-world testing across diverse operating conditions.

Intelligent Control and Remote Monitoring:

Every three pass steam boiler from ZOZEN is equipped with an advanced PLC-based fully automatic control system. The Boiler IoT platform enables remote monitoring, fault diagnosis, and expert management, allowing plant operators to optimize performance and minimize downtime. This intelligent control capability supports unattended operation, reducing labor costs and improving safety.

Global Service Network:

ZOZEN's three pass steam boiler products have been exported to more than 100 countries and regions, serving over 15,580 satisfied customers across diverse industries. The company's global service network provides 24/7 online customer support, 12-month free maintenance service from delivery, and rapid response to technical inquiries. Whether you are upgrading an existing boiler room or constructing a new industrial facility, ZOZEN's technical team stands ready to deliver customized three pass steam boiler solutions that meet your exact specifications.

Conclusion

For industrial facilities seeking to reduce fuel costs and improve operational efficiency, the three pass steam boiler represents a proven, high-return technology investment. ZOZEN's WNS series combines nearly 40 years of manufacturing excellence with cutting-edge heat transfer design to deliver reliable, ultra-efficient steam generation.
